Air Cleaner, 12.6 in. diameter dry paper single element - Donaldson Brand
Alternator, 110 AMP with integral regulator
Battery, Dual Delco 12-V maintenance free 750 CCA each
Brake System, Dual circuit, hydraulic brake system - Hydro-boost, with load sensing proportioning valve in rear circuit and a metering valve between the master cylinder and 6-way joint on the front brake lines. Disc front and self-adjust outboard mounted drum rear. Mechanical, transmission mounted parking brake. Non-asbestos linings are standard. A
Exhaust Brake, Butterfly valve type
Exhaust System, Single horizontal exhaust system
Frame, Ladder type channel - section straight frame rail 33.5 in. (85.1 cm) wide through the total length of frame. Yield strength 44,000 psi (303,369 kPa) section modulus of 7.20 and RBM 316,800.
Front Axle, "I"-beam rated at 6830 lbs. (3098 kg) - Includes integral hydraulic power steering Ratio 18.8-20.9:1
Front GAWR, 5360 lbs (2431 kg) capacity
Front Shock Absorber
Front Stabilizer Bar
Front Suspension, Tapered Leaf, 8440 lbs. (3828 kg) capacity - Semi-elliptical tapered leaf springs. Includes shock absorbers and stabilizer bar.
Front Tire Size, 215/85R16E (10 ply) tubeless Radial - all season tread
Front Wheels, 16" x 6", 6-hole disc, painted white
Fuel Tank, Single, 30-gallon (113.6L) rectangular fuel tank - Mounted between separator mounted on the frame rail with dash mounted warning light.
Fuel Tank, Single, 33-gallon (124.9L) cylindrical fuel tank - Out side mounted on right hand frame rail. Tokyo-Roki heated fuel water separator mounted on the frame with dash mounted warning light.

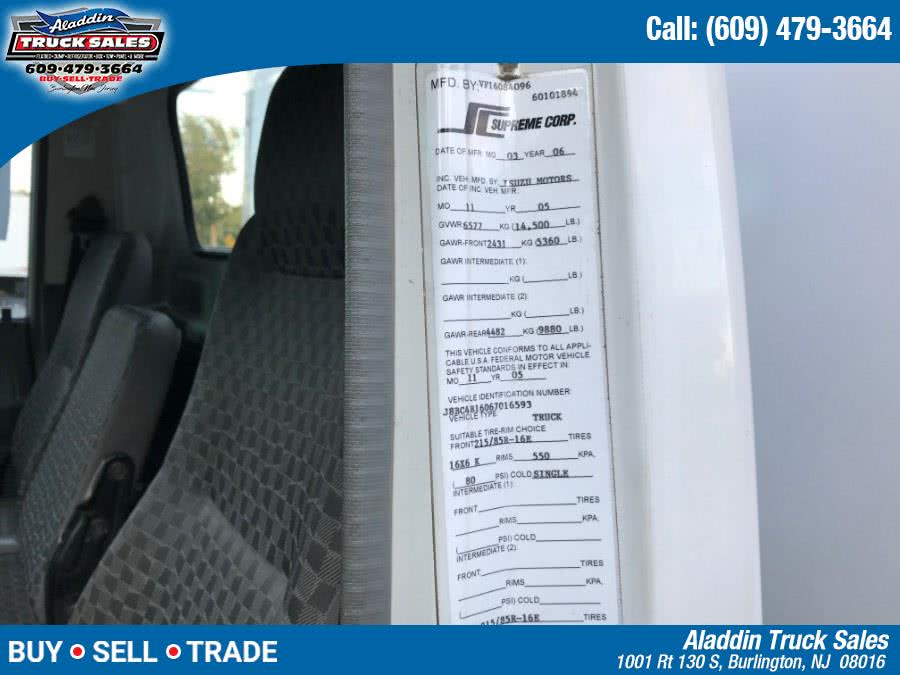

GVWR, 14,500 lbs (6577 kg) capacity

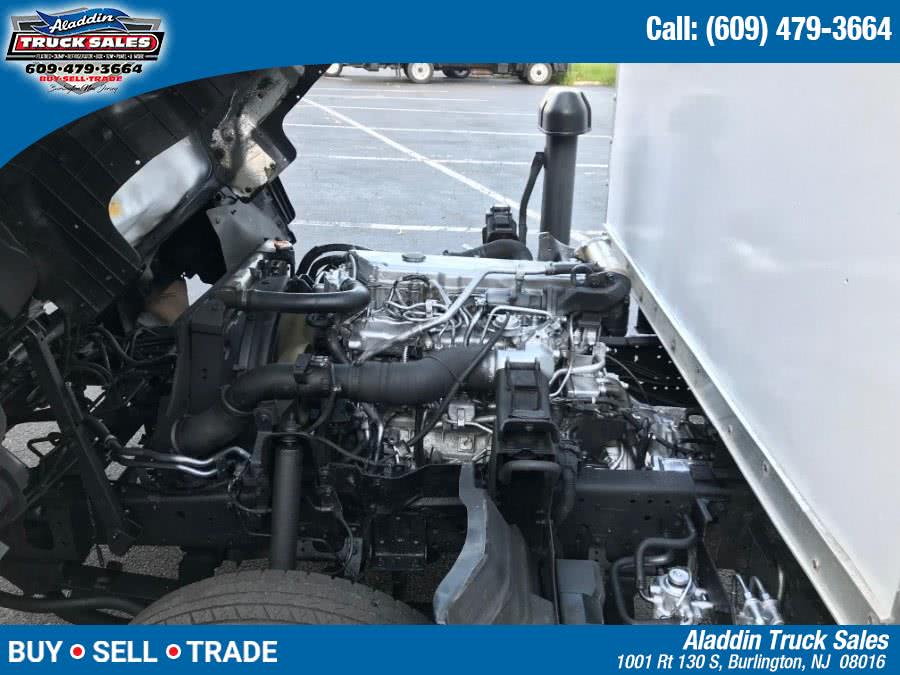

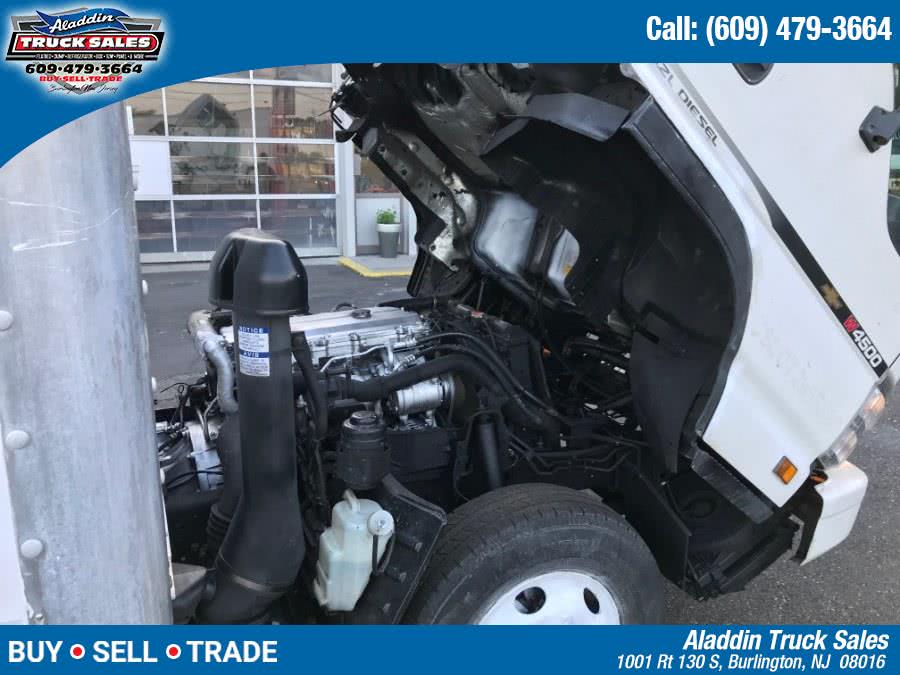

Isuzu Diesel Engine, 4HK1-TC, 317 CID (5.19L), 190 Gross HP at 2600 RPM: 387 lb-ft gross torque at 1500 RPM. 4 cylinder, 16 valve, four cycle, overhead cam, turbocharged, intercooled, water cooled EGR valve, direct injection, electronically controlled common rail fuel system Engine cruise control and idle up function. Oil level check switch and lig
Rear Axle Ratio, 4.30:1
Rear Axle Ratio, 5.125:1
Rear Axle, R040, single-speed, 11,020 lbs. (4999 kg) capacity - single speed with oil lubricated rear wheel bearings
Rear GAWR, 9880 lbs (4481 kg) capacity
Rear Shock Absorber
Rear Suspension, Multi-Leaf, 9880 lbs. (4481 kg) capacity - Semi-elliptical main and auxiliary leaf springs. Includes shock absorbers.
Rear Tire Size, 215/85R16E (10 ply) tubeless Radial - all season tread
