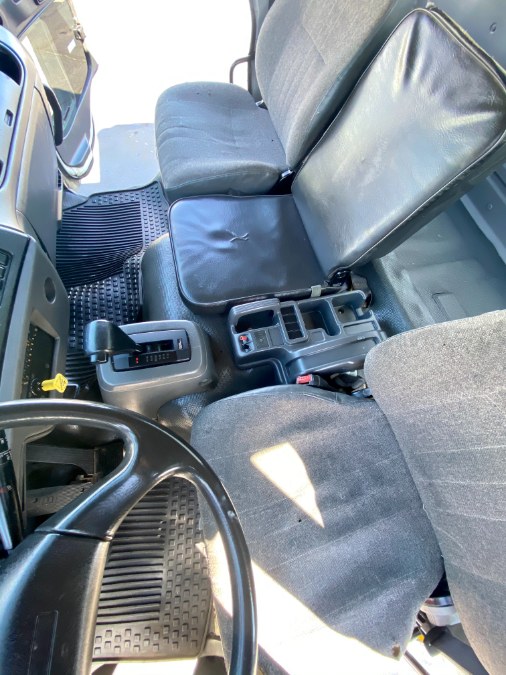

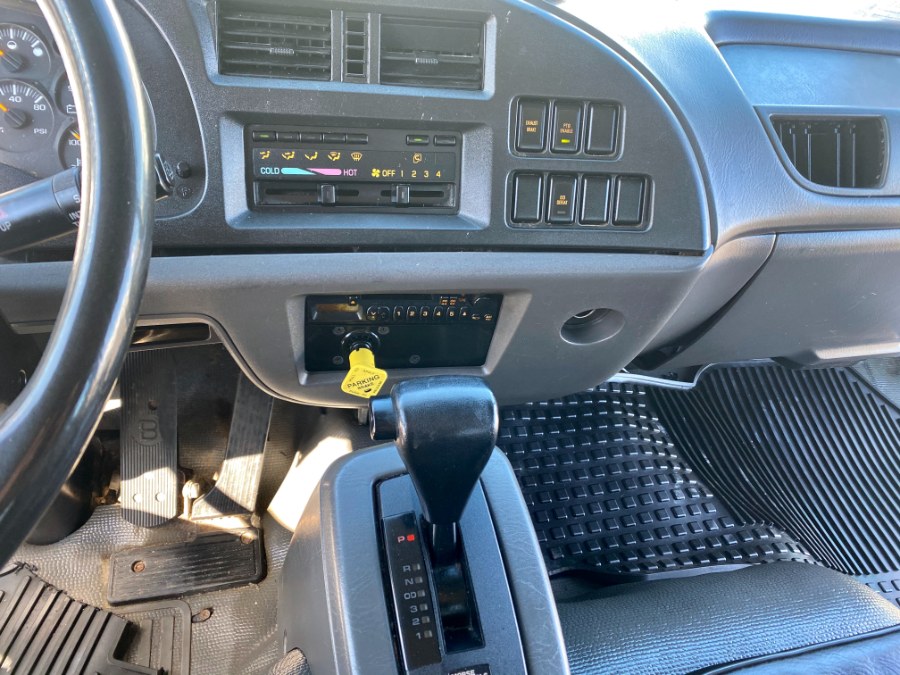

Automatic Transmission, Allison 2500 (Wide Ratio) 5-speed - with 0.74 over drive. Torque rating: 550 lb-ft, 33,000 lbs. (15,000 kg) maximum GVWR/GCWR. Includes transmission oil cooler in radiator, and floor mounted "T" handle shifter , With Option PTX, the truck will be equipped with the Allison 2500HS Highway Series transmission. When ordered with
Engine Shutdown, Automatic engine shutdown with alarm - Includes reset feature. Activated by low or high engine oil pressure, and high coolant temperature

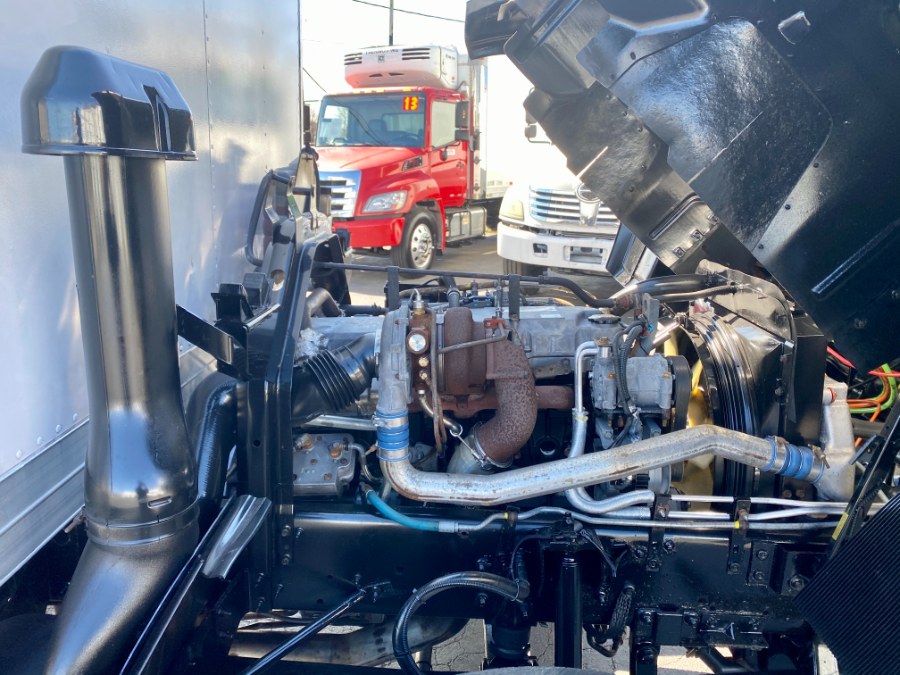

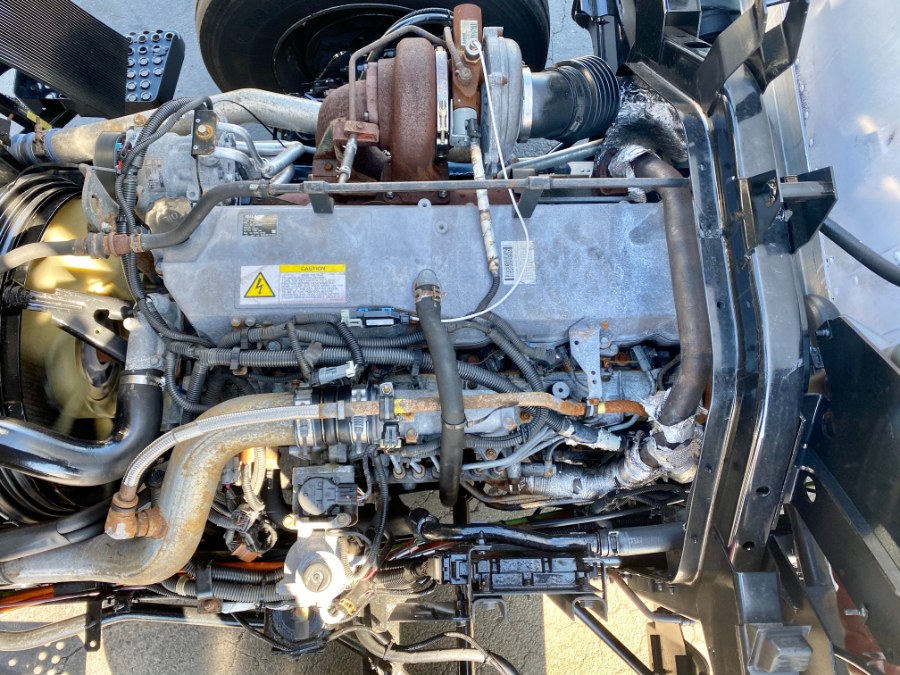

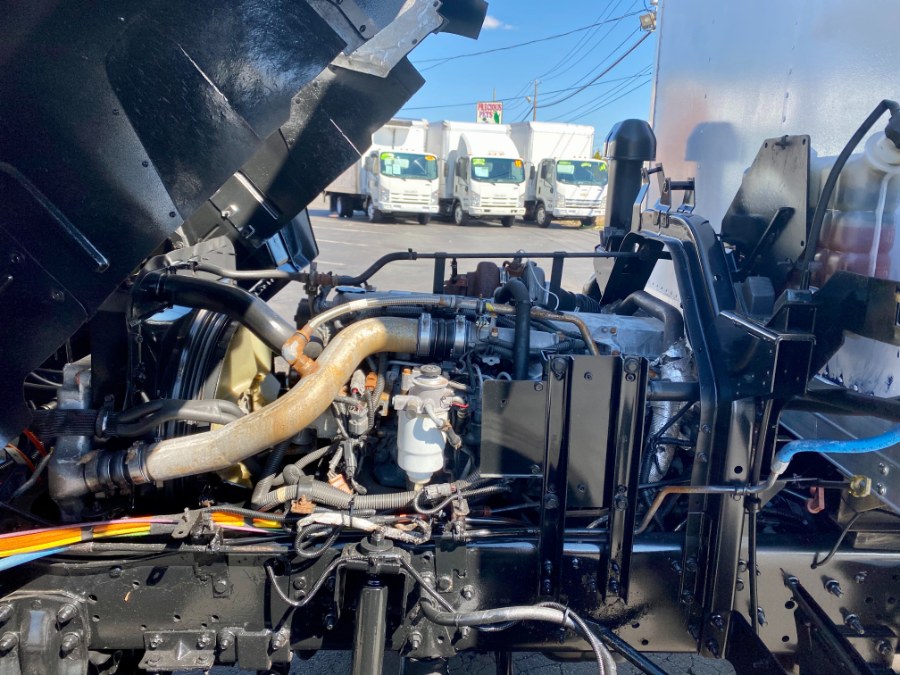

Engine, Isuzu Diesel Engine - Isuzu 6HK1-TC 7.8L I6 200 hp (149 kw) @ 2200 rpm and 520 lb-ft torque (702 N-m) @ 1450 rpm - Maximum engine Speed 2400 rpm. Oil Level Sensor: Warning sensor for low oil levels.
Exhaust System, Single horizontal exhaust system. - passenger side mounted inside frame rail, aluminized steel
Front Axle, 10,000 lbs. (4536 kg) capacity - Up to 53 degree turn angle
Front Manufacturer Code - Goodyear (Requires S4A Goodyear)
Front Stabilizer bar - solid bar style
Front Suspension, Front Tapered Leaf, 10,000 lbs. (4536 kg) capacity
Front Tires, 245/75R22.5G-9350 lbs. (4241 kg) capacity, (With R4A Goodyear, R3C front premium tread; With R4N Bridgestone R3B front all season tread) (N/A with Michelin)
Front Tread, Premium, highway
Front Wheels, 22.5" x 7.5" (58.9 cm x 19 cm), steel disc - Accuride 10-hole, flange nut, hub piloted, 11.25" (28.5 cm) bolt circle, painted Gray (E-Coat), 13,220 lbs. (5996 kg) capacity, (Requires QH4 rear wheel)

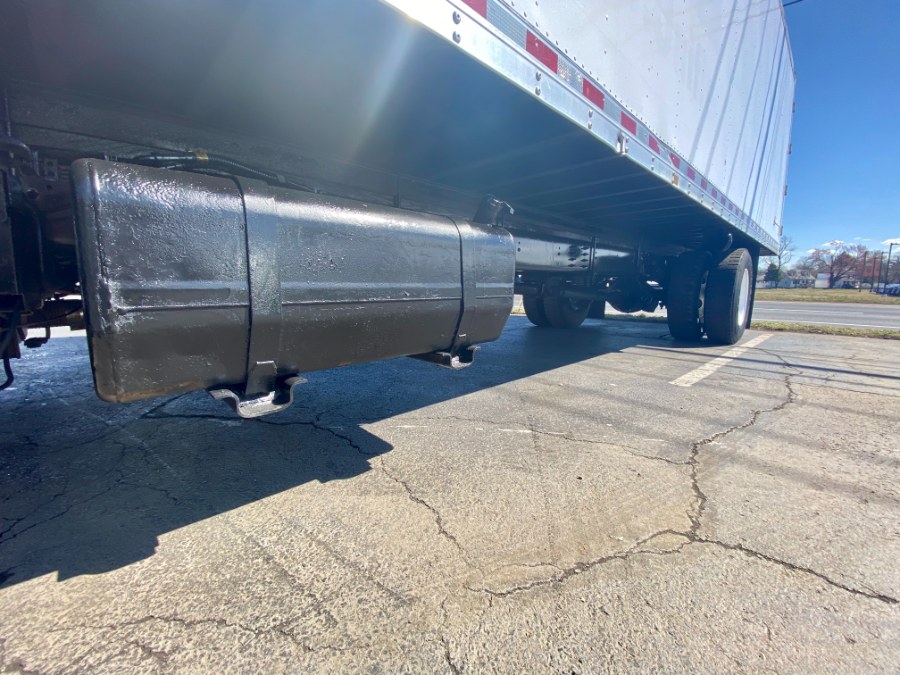

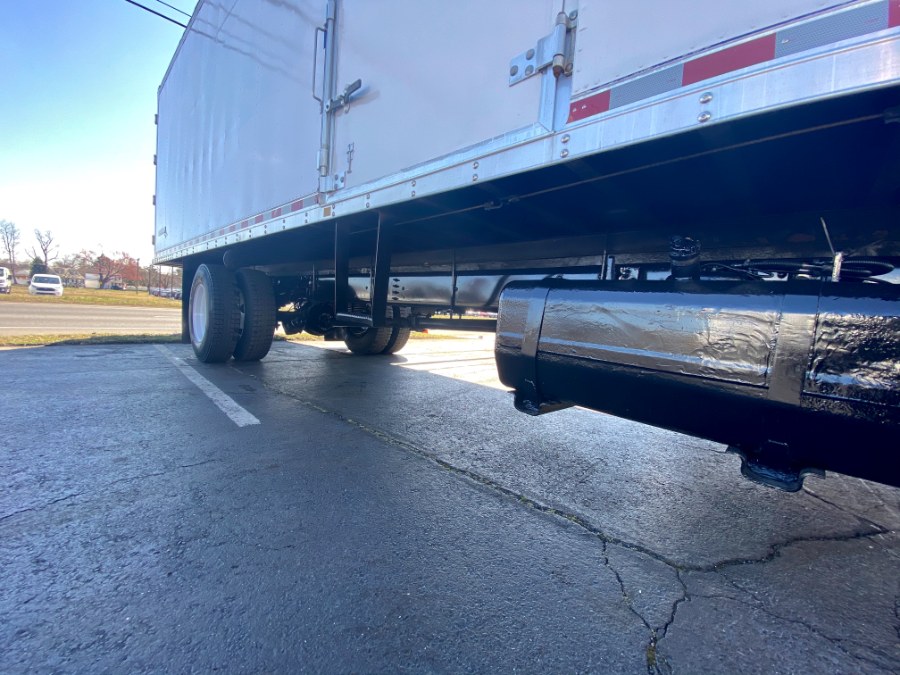

Fuel Tank, Single, 50 gallon (189.3L) fuel capacity, driver side only
Fuel Water Separator, Racor frame-mounted spin-on type with sight bowl, drain, and paper element. Includes water-in-fuel telltale dash light - Standard with Isuzu diesel engines includes 150 watt heater.
Hydraulic Split brake system - with 4-channel ABS disc-type Bosch Hydro Max high performance booster, tandem master cylinder provides independent front and rear circuits, front and rear disc Meritor calipers: 15 3/8" (391mm) rotor diameter, 1 1/2" (39.1 mm) rotor thickness with (4) 2 1/2" (70 mm) diameter pistons
Option PTO not required - This option should only be ordered when a customer specifically does not require an electric hand throttle for use with power-take-off provisions. (Note: deletes transmission PTO gear with Allison 2200 HS (MTX) or 2500 HS (MWP) transmissions.)
Rear Axle Ratio, 4.88:1 (Requires HPL, HPK, HPN, HPP, HPT, HNB or HNA single speed rear axles or HPM or H15 two speed rear axles)
Rear Axle, Single Speed, Dana 19060S, 19,000 lbs. (8618 kg) capacity - includes 75W-90 synthetic lubricant and National brand oil seals (N/A with G45 rear suspension)
Rear Suspension, Rear Multi-Leaf, 19,000 lbs. (8618 kg) capacity (Requires HPK or HPL single rear axle or HPM two-speed rear axle)

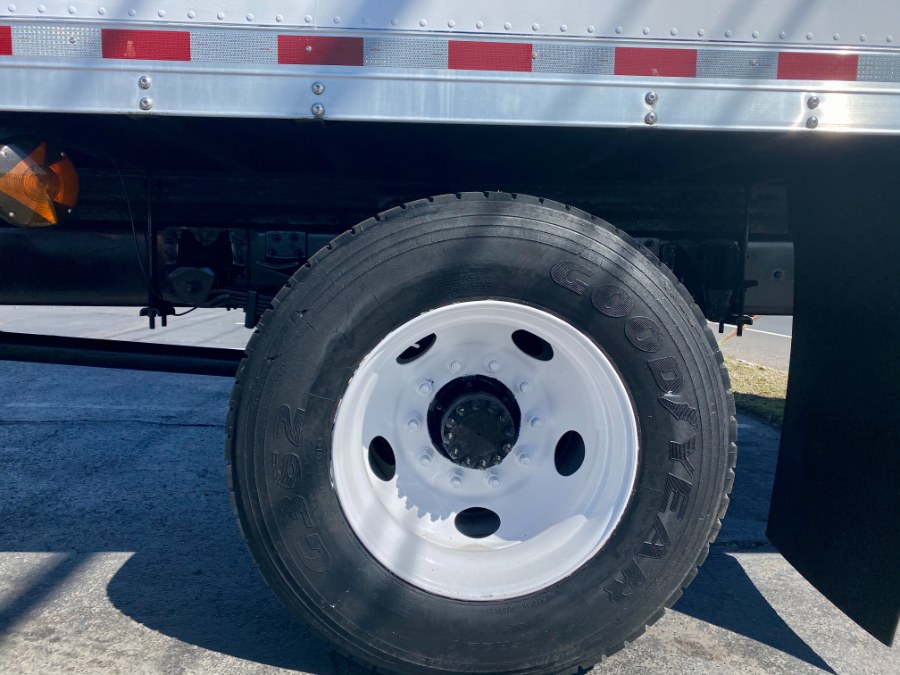

Rear Tires, 245/75R22.5G - 17,640 lbs. (8001 kg) capacity, (With S4A Goodyear, S3C rear premium tread or S3H rear highway traction tread; With S4N Bridgestone S3B front all season tread) (N/A with Michelin)
Rear Tread, Premium highway
Rear wheel drive
Rear Wheels, 22.5" x 7.5" (58.9 cm x 19 cm), steel disc - Accuride 10-hole, flange nut, hub piloted, 11.25" (28.5 cm) bolt circle, painted Gray (E-Coat) 26,440 lbs. (11,993 kg) capacity, (Requires HPK, HPL, HPN, HPP or HPT single speed rear axle, or HPM or H15 two-speed rear axle) (Not available with YWM, YWP or YRN rear tires)
Road Speed Governor, controlled by the speed rating of the tires ordered. All vehicles with 19.5" tire sizes and with most 22.5" have speed governed to a maximum of 75 mph (120 kph). A few aggressive tire tread patterns may have lower maximum speed ratings that limit governed speed to 65 or 55 mph - see tire company specifications for details.
Truck Application NOTE: Federal Excise Tax (FET) of 12% must be paid on the final selling price for trucks with GVWR's of 33,001 lbs. and above.
Wheelbase, 128" (325.1 cm) - with 97" (246.4 CM) CA
89 inch effective BBC - , 2 step entry, wheel well splash guards, inner and outer fenders, extended corrosion treatment
Cab Mounts, Cylindrical rubber mounts at front and rear. - Cab tilt lock RH side.
Electric two-speed and adjustable intermittent wipers include wet arm windshield washer.
Exterior Lighting, Five roof mounted clearance lamps and headlamps are controlled via the LH column mounted switch for truck application or with a dash mounted switch for tractor applications.
Exterior Lighting, Halogen headlights, daytime running lights are standard
Full width bumper. - A plastic fascia is supported by a steel beam.
Horn, Single electric horn mounted behind bumper. - Steering button activated.
Mirrors, Outside passenger side and driver side, West Coast stainless steel heads and brackets, dual 7" x 16". - Set for 102" body width.
Paint Scheme, Solid
Side impact door beams - , 75 degree passenger door opening.
Tempered tinted side glass window - with driver side manual crank window
Tilt up panel for service access to washer motor and washer fluid and cab fresh air filter - , inside lower dash release.
Air Bags, Supplemental Inflatable Restraints not included
Exterior Lighting, Halogen headlights, daytime running lights are standard
Horn, Single electric horn mounted behind bumper. - Steering button activated.
Hydraulic Split brake system - with 4-channel ABS disc-type Bosch Hydro Max high performance booster, tandem master cylinder provides independent front and rear circuits, front and rear disc Meritor calipers: 15 3/8" (391mm) rotor diameter, 1 1/2" (39.1 mm) rotor thickness with (4) 2 1/2" (70 mm) diameter pistons
Side impact door beams - , 75 degree passenger door opening.
Two lap/shoulder assemblies with three point design.

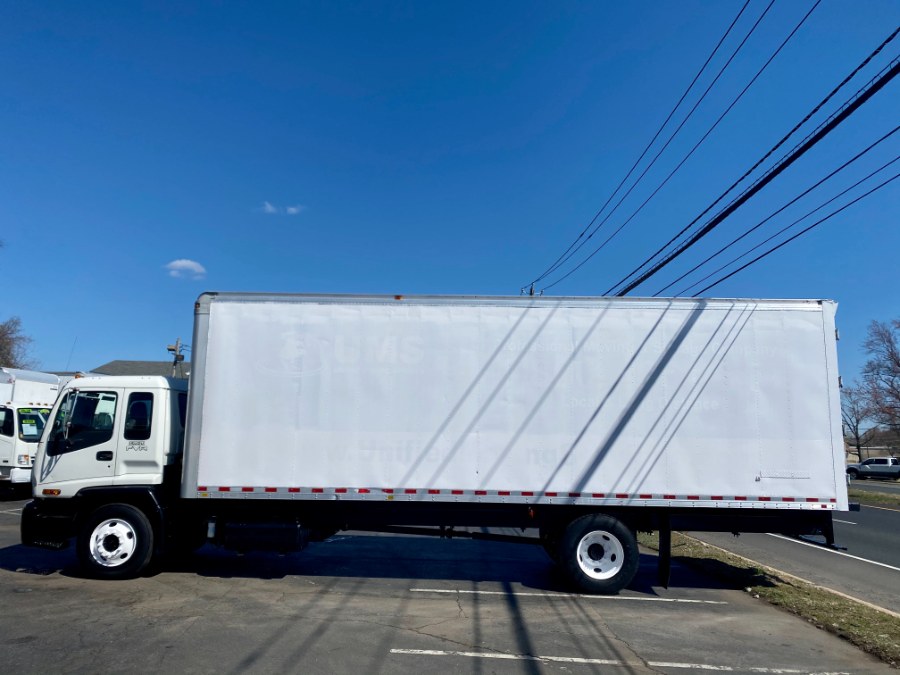

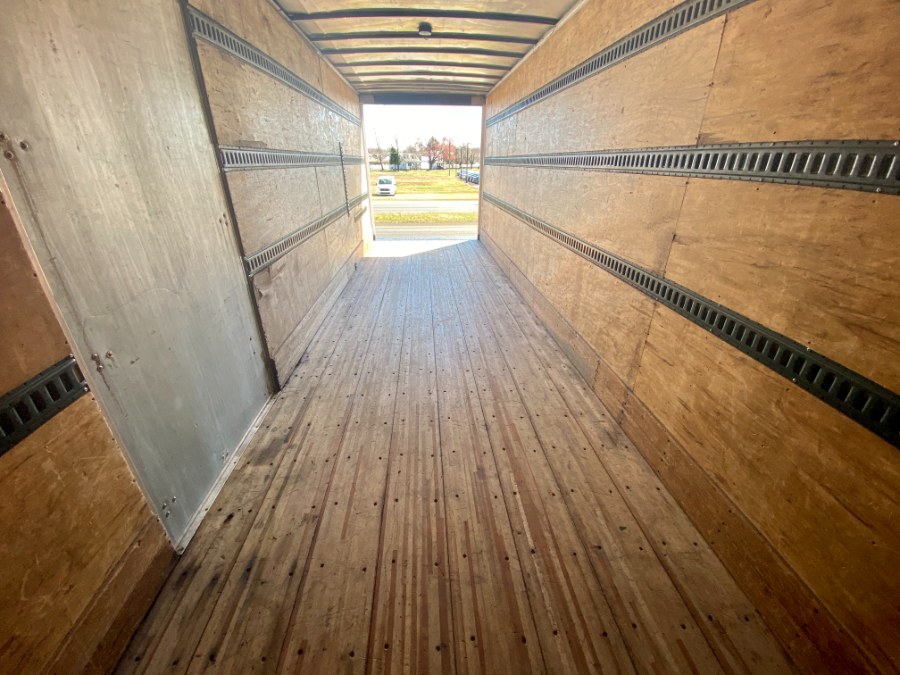

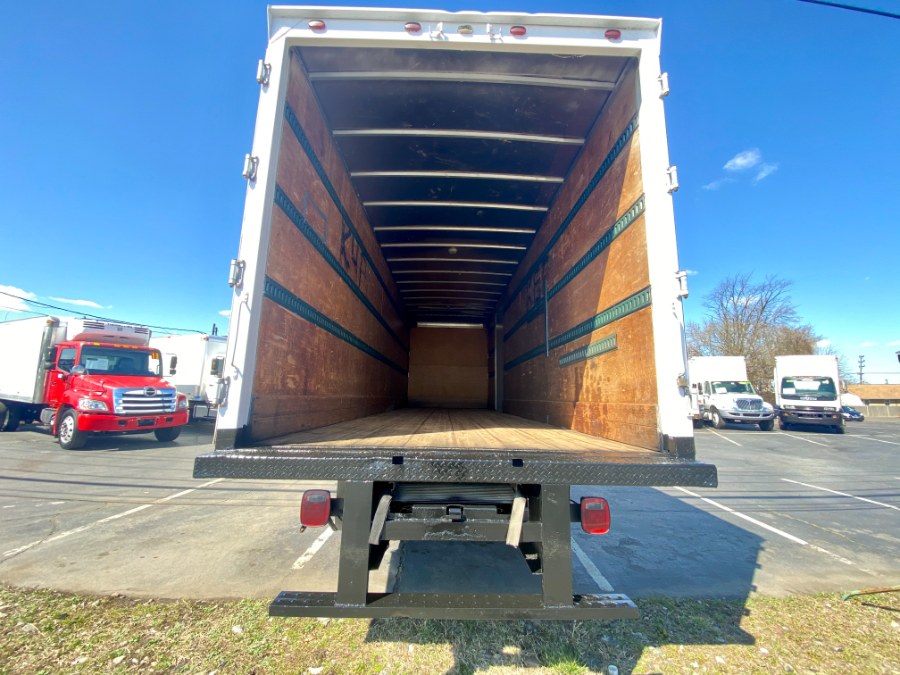

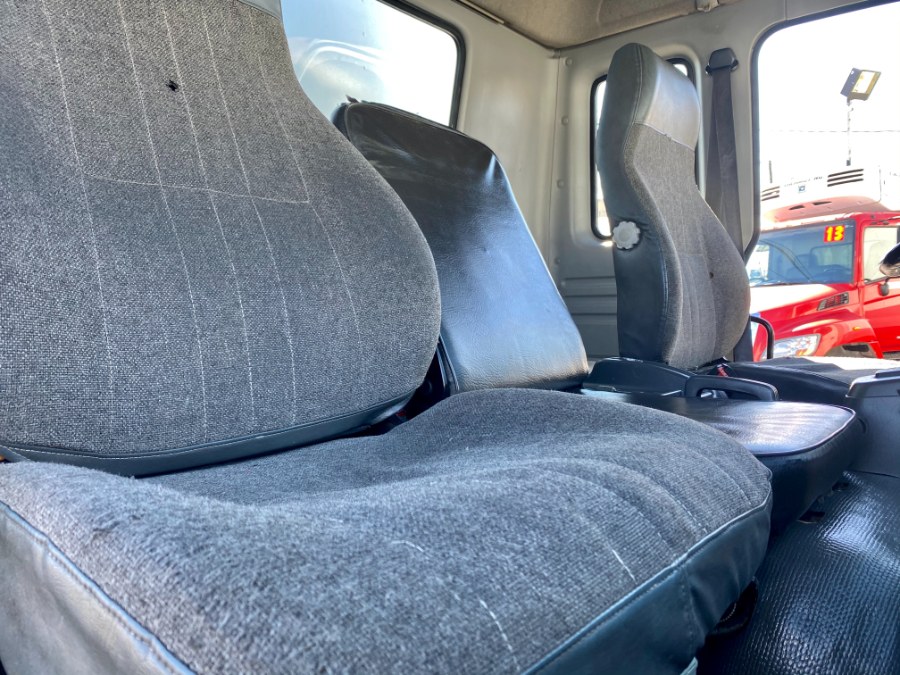

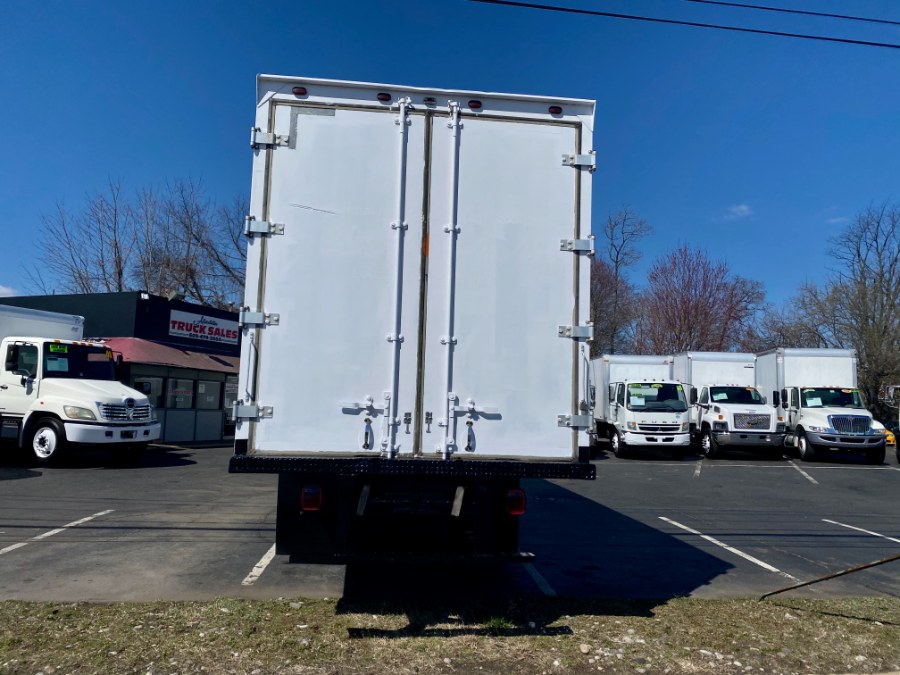

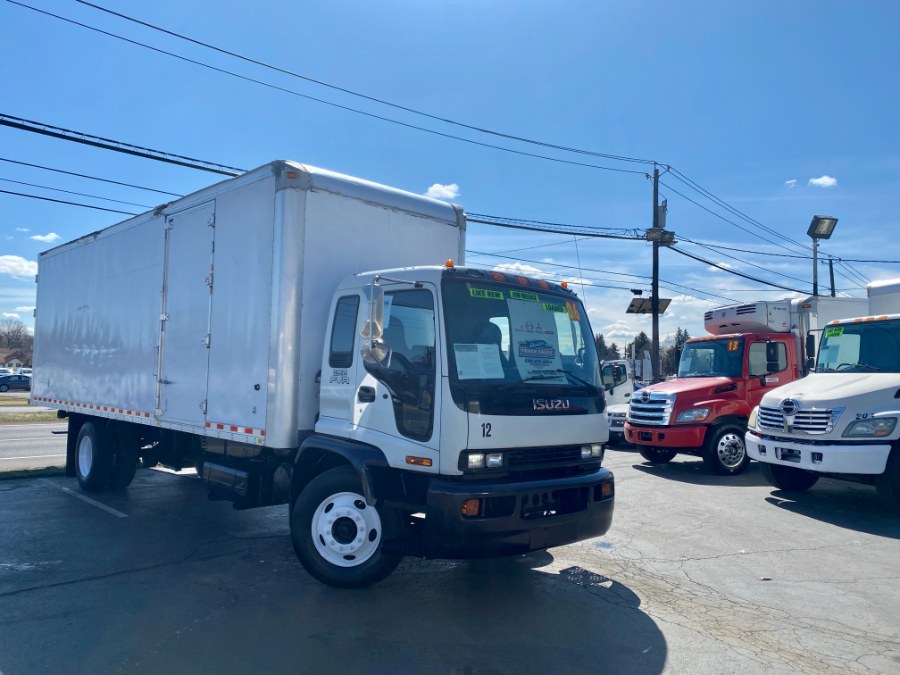

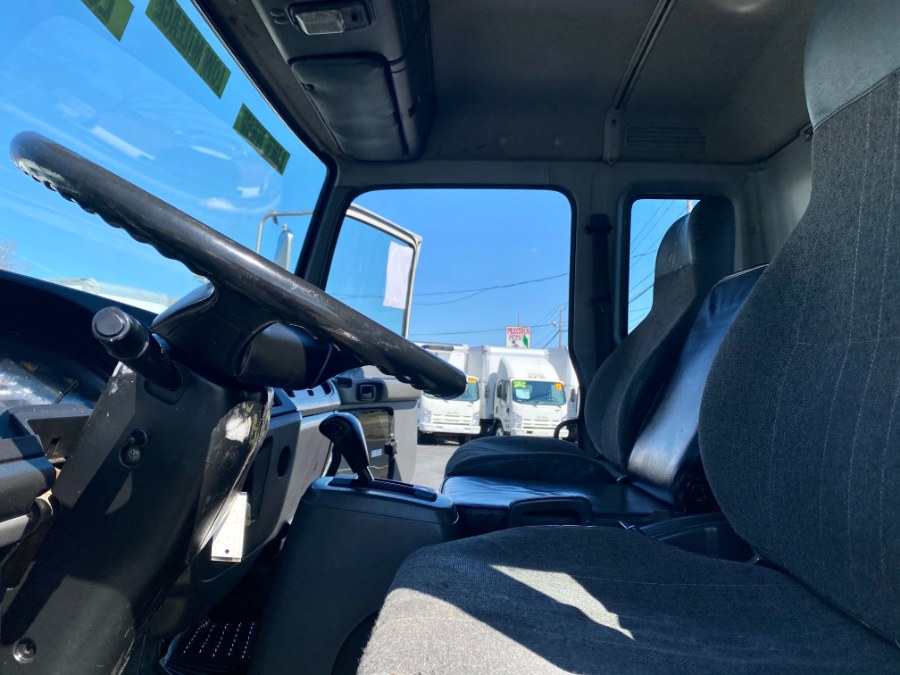

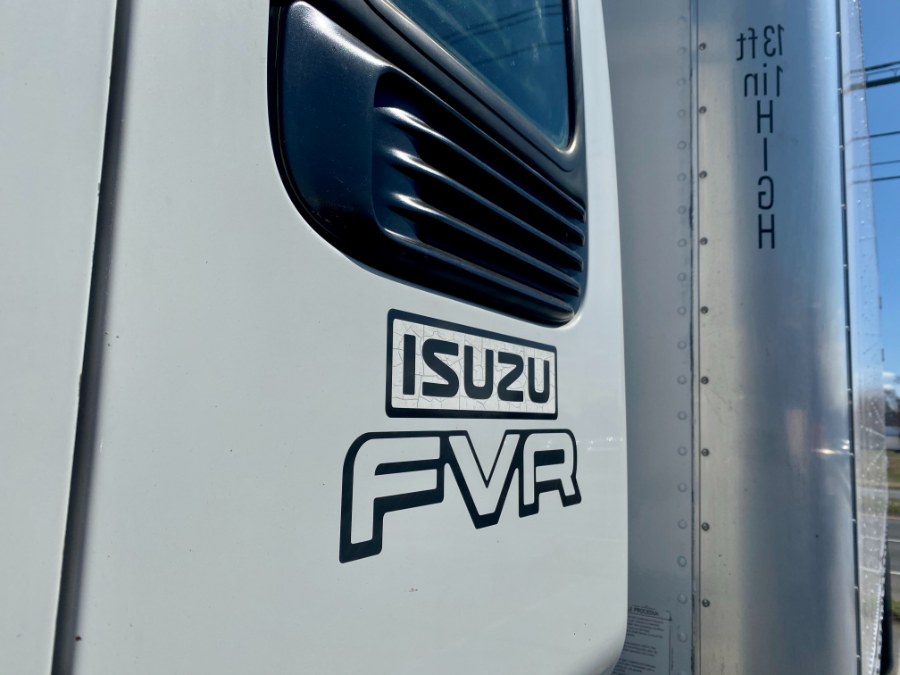

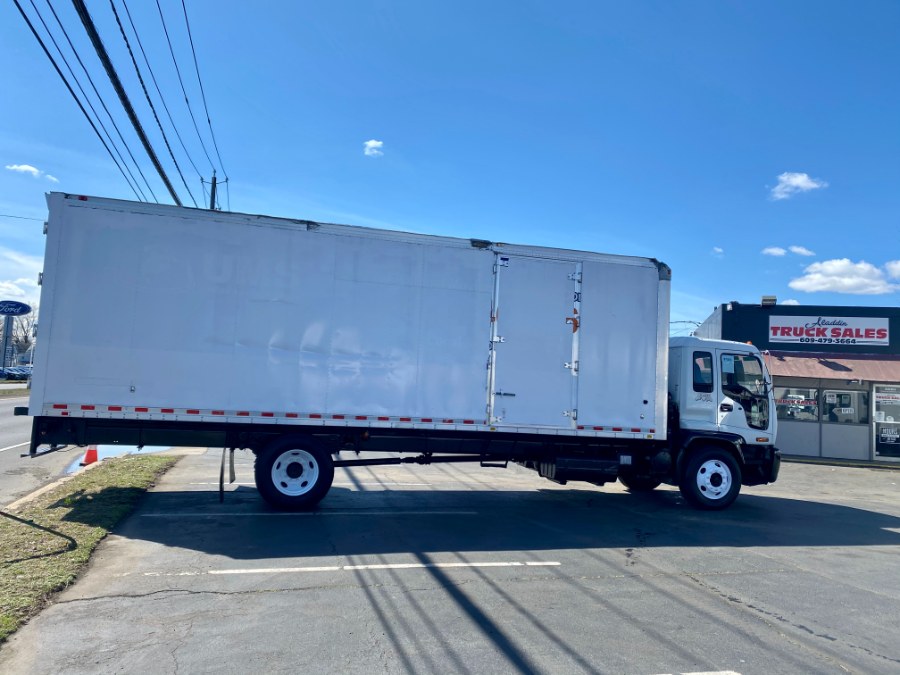

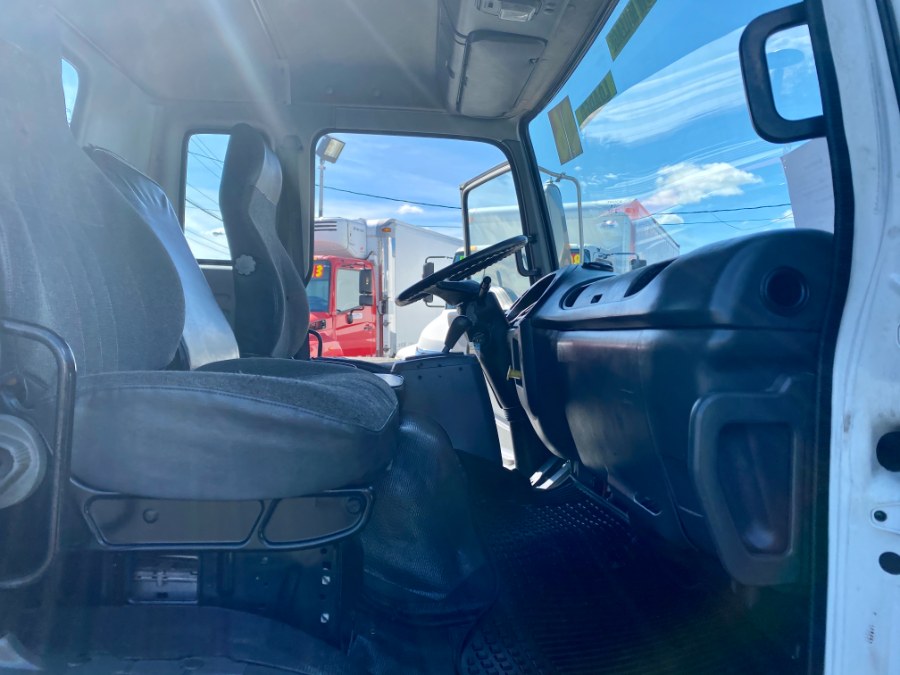

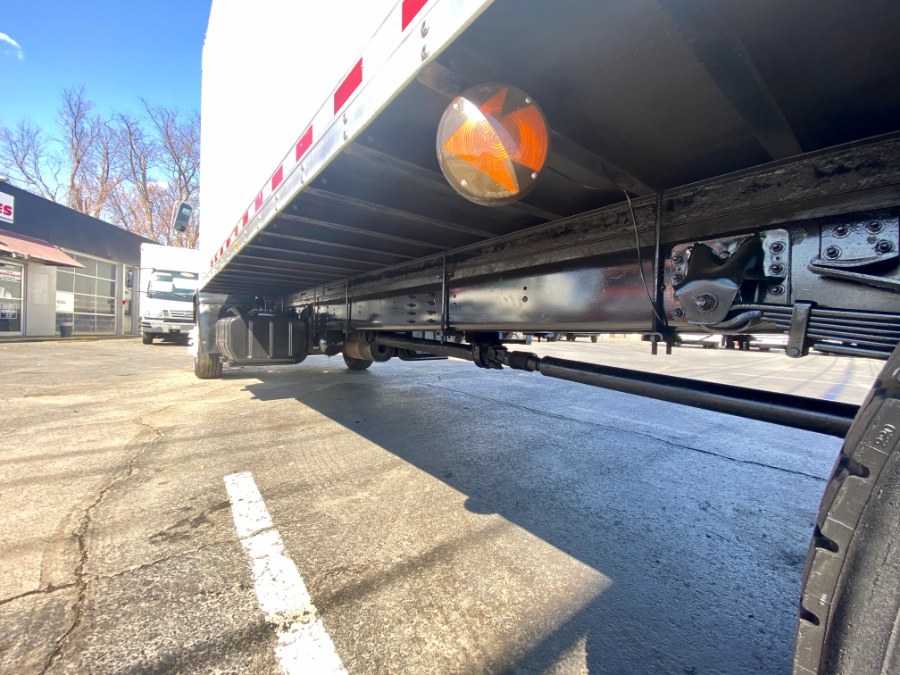

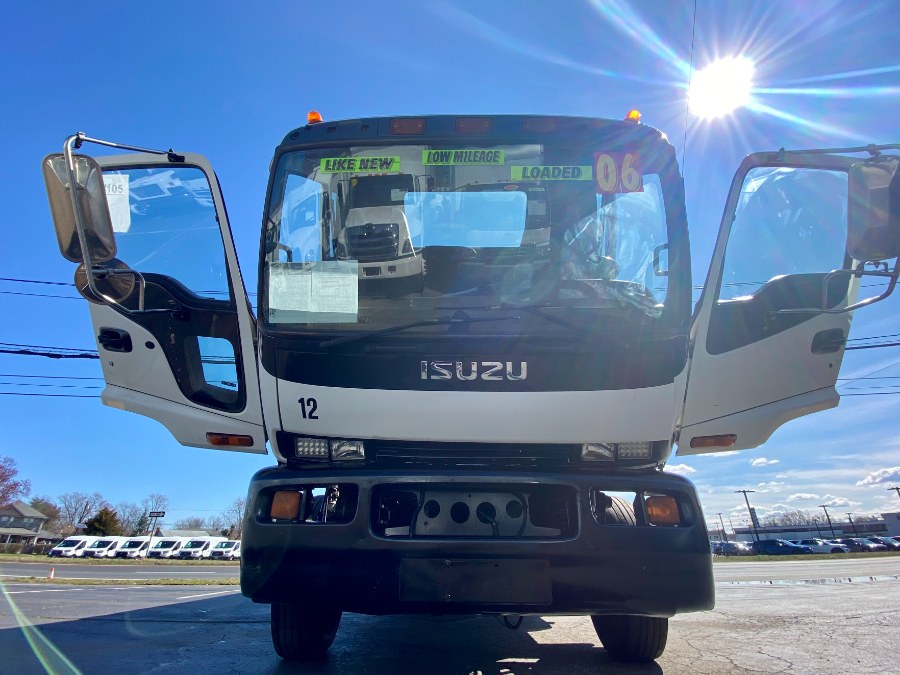

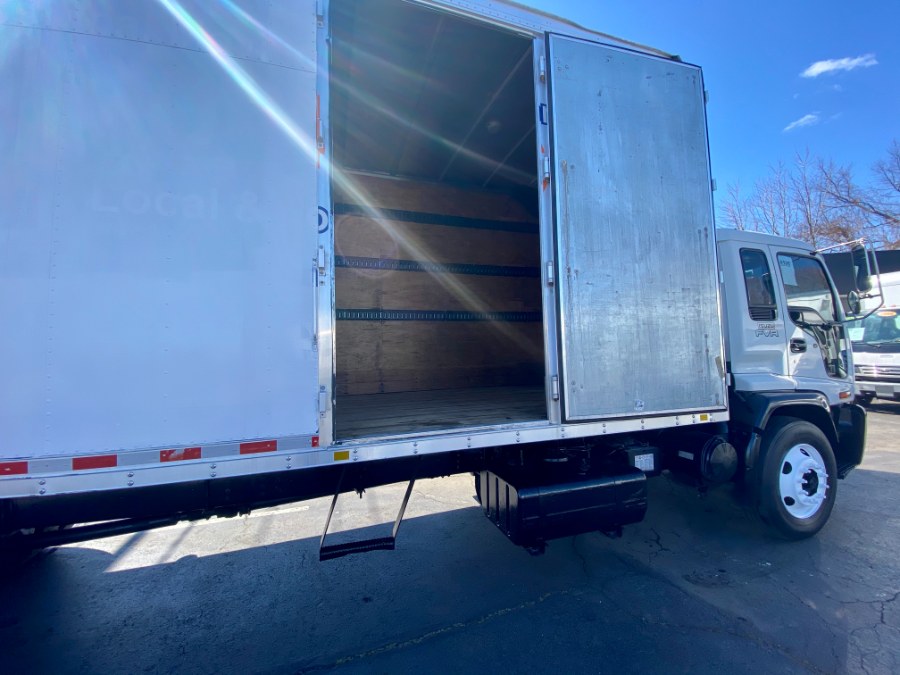

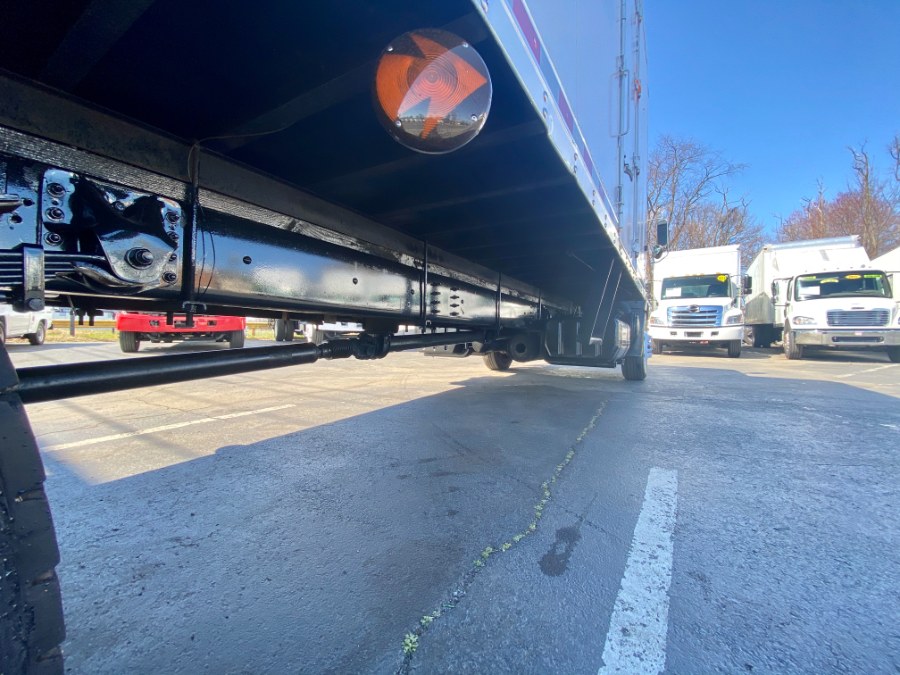

Pictures of used 2006 Isuzu Fvr Box Truck in Burlington, NJ
