Air Cleaner, Dry Paper single element. (Donaldson brand) Air cleaner canister standard with air restriction gauge.
Alternator, 110 AMP with integral regulator
Battery, Dual Delco 12-V maintenance free, 750 CCA each
Brake System, Dual circuit, hydro-boost hydraulic with EBD (Electronic Brake Distribution). Disc front and self-adjust outboard mounted drum rear. Mechanical, transmission mounted parking brake. Non-asbestos semi metallic linings are standard. 4 channel anti-lock brake system.
Exhaust Brake, Butterfly valve type
Exhaust System, Single horizontal with DPF (Diesel Particulate Filter)
Front Axle, Reverse Elliot "I"-beam rated at 6830 lbs. (3098 kg). Includes integral hydraulic power steering. Ratio 18.8-20.9:1
Front GAWR, 6830 lbs (3098 kg) capacity
Front Suspension, 8440 lbs. (3828 kg) capacity. Semi-elliptical tapered leaf springs. Includes shock absorbers and stabilizer bar.
Front Tires, 225/70R19.5F (12 ply) tubeless Radial, all season tread
Front Wheels, 19.5" x 6", 6-hole disc, painted white

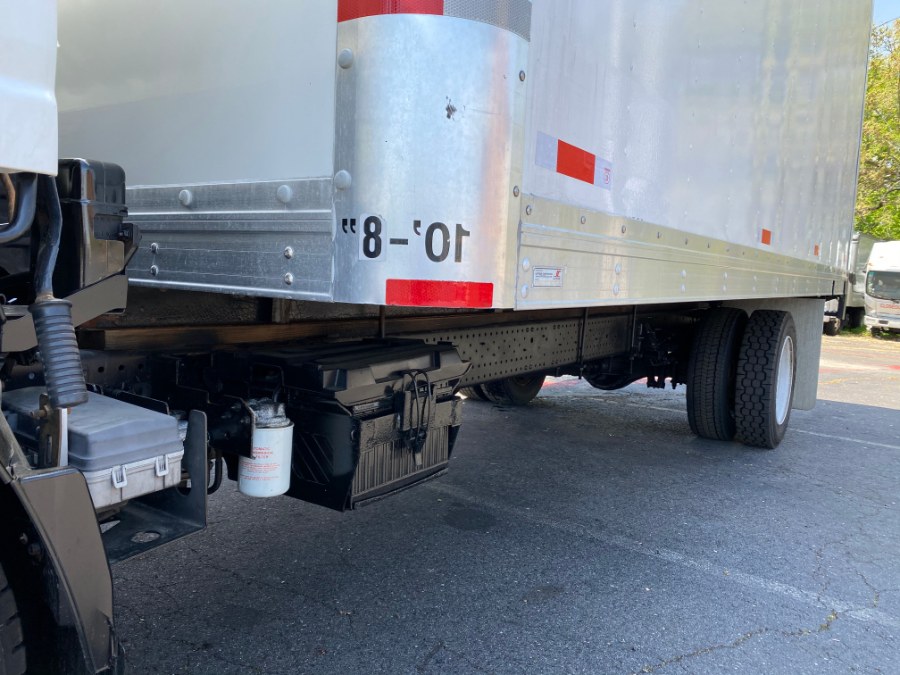

Fuel Tank, 30-gallon (113.6L) rectangular fuel tank. Mounted between frame rail through the rail fuel fill. Fuel water separator with dash mounted warning light.
Fuel Tank, 33-gallon (124.9L) cylindrical fuel tank. Outside mounted on right hand frame rail. Fuel water separator with dash mounted warning light.

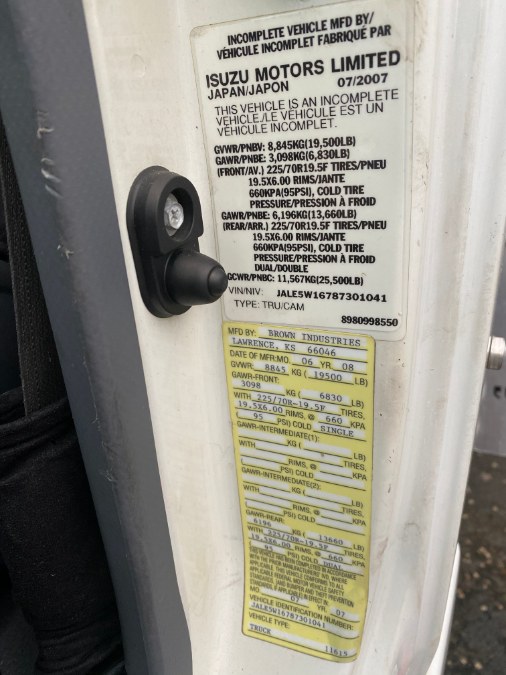

GVWR, 17,950 lbs (8142 kg) capacity

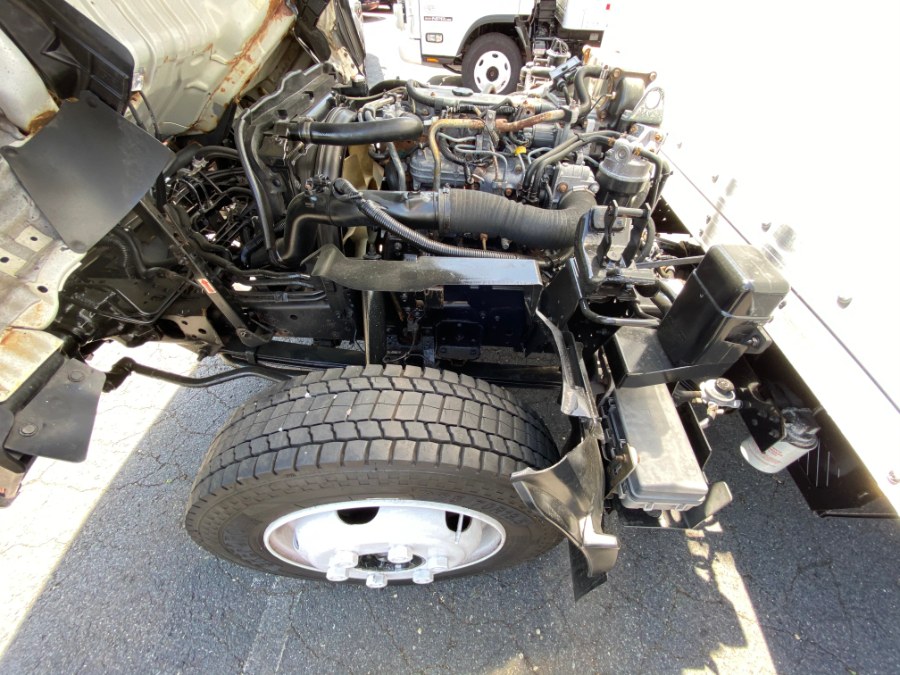

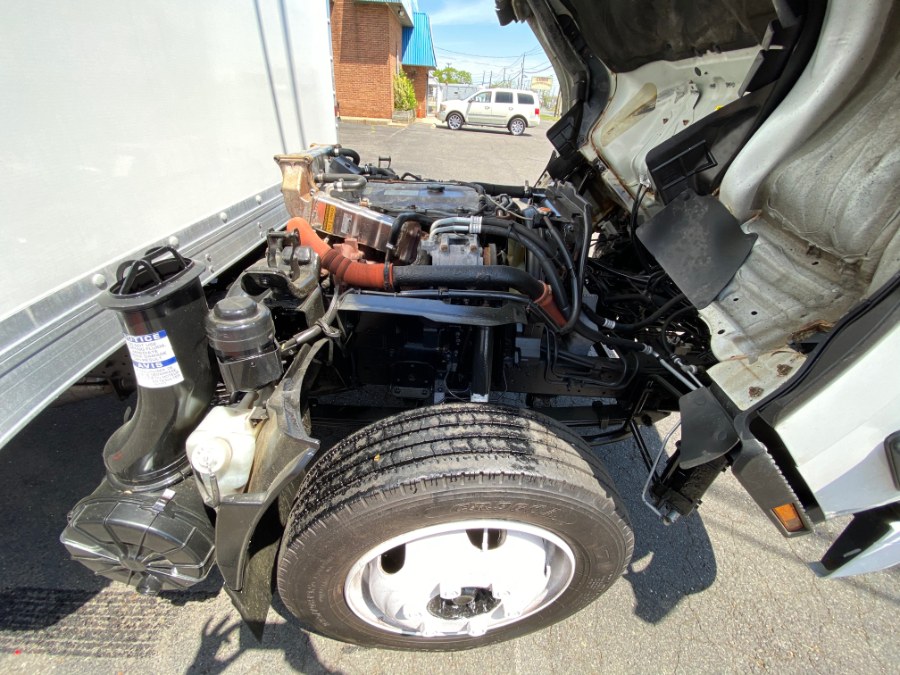

Isuzu Diesel Engine, 4HK1-TC, 317 CID (5.19L), 205 HP at 2400 RPM, 441 LB FT turbocharged, inter-cooled, water cooled EGR, direct injection, electronically controlled common rail fuel system, engine cruise control and idle up function. Oil level check switch and light. Engine warning system with audible warning for low oil pressure, high coolant te
Rear Axle Ratio, 5.571:1
Rear Axle, single-speed, 14,550 lbs. (6600 kg) capacity with oil lubricated rear wheel bearings
Rear GAWR, 12,980 lbs (5888 kg) capacity
Rear Suspension, 14,550 lbs. (6600 kg) capacity. Semi-elliptical main and auxiliary multi-leaf springs. Includes shock absorbers.
Rear Tires, 225/70R19.5F (12 ply) tubeless Radial, all season tread
Rear wheel drive
Rear Wheels, 19.5" x 6", 6-hole disc, painted white
