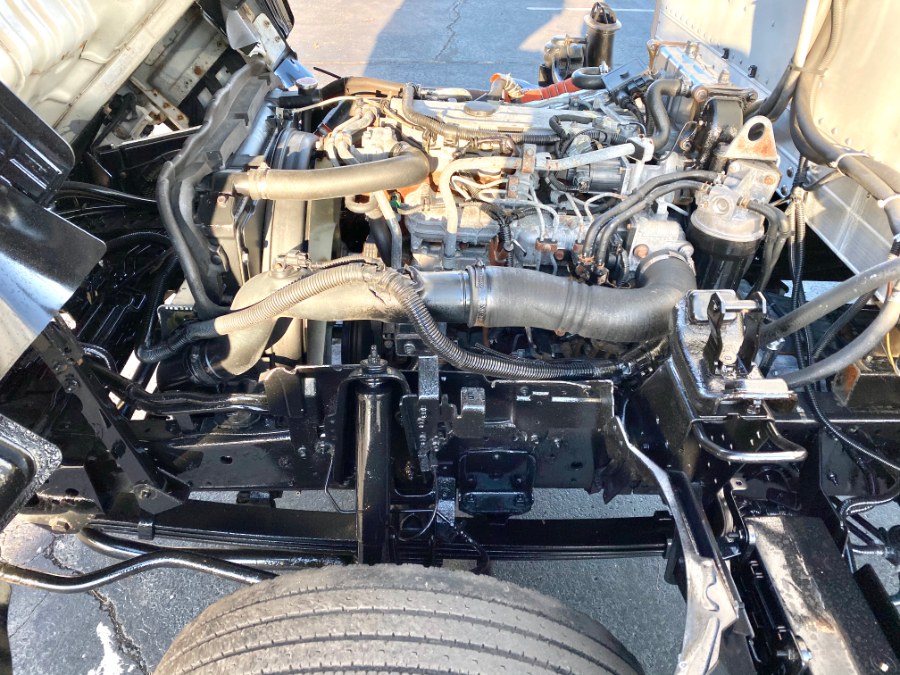

4HK1-TC, diesel engine 317 CID (5.19L), 175 HP at 2400 RPM: 387 ft-lb gross torque at 1850 RPM. 4 cylinder, 16 valve, four cycle, overhead cam, turbocharged, inter-cooled, water cooled EGR valve, direct injection, electronically controlled common rail fuel system, engine cruise control and idle up function. Oil level check switch and light. Engine
4HK1-TC, diesel engine 317 CID (5.19L), 205 HP at 2400 RPM: 441 ft-lb gross torque at 1850 RPM. 4 cylinder, 16 valve, four cycle, overhead cam, turbocharged, inter-cooled, water cooled EGR valve, direct injection, electronically controlled common rail fuel system, engine cruise control and idle up function. Oil level check switch and light. Engine
Air Cleaner, Dry Paper single element (Donaldson brand). Air cleaner canister standard with air restriction gauge.
Alternator, 110 AMP with integral regulator
Battery, Dual Delco 12-V maintenance free, 750 CCA each
Brake System, Dual circuit, vacuum assisted hydraulic with EBD (Electronic Brake Distribution). Disc front and self-adjust outboard mounted drum rear. Mechanical, transmission mounted parking brake. Non-asbestos semi metallic linings are standard. 4 channel anti-lock brake system.
Clutch, single dry plate 12.8" diameter actuated by self-adjusting master/ slave cylinder. Ceramic facing material.
Exhaust Brake, Butterfly valve type

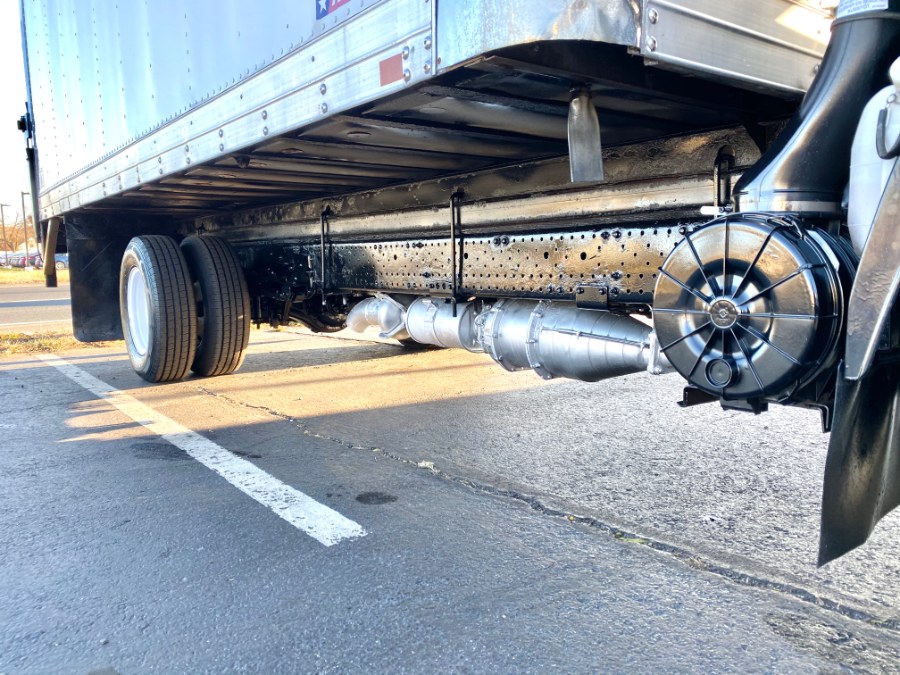

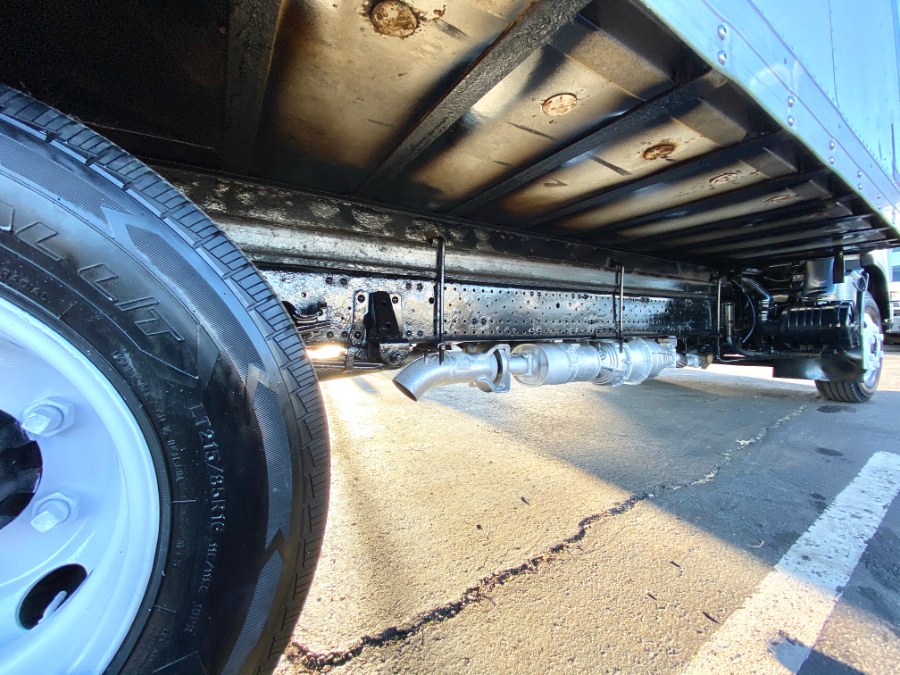

Exhaust System, Single horizontal with DPF (Diesel Particulate Filter)
Front Axle, Reverse Elliot "I"-beam rated at 6830 lbs. (3098 kg). Includes integral hydraulic power steering. Ratio 18.8-20.9:1
Front GAWR, 5360 lbs (2431 kg) capacity
Front Suspension, 8440 lbs. (3828 kg) capacity. Semi-elliptical tapered leaf springs. Includes shock absorbers and stabilizer bar.
Front Tires, 215/85R16E (10 ply) tubeless Radial, all season
Front Wheels, 16" x 6", 6-hole disc, painted white
Fuel Tank, 30-gallon (113.6L) rectangular fuel tank. Mounted between frame rail through the rail fuel fill. Fuel water separator with dash mounted warning light.
Fuel Tank, 33-gallon (124.9L) cylindrical fuel tank. Outside mounted on right hand frame rail. Fuel water separator with dash mounted warning light.

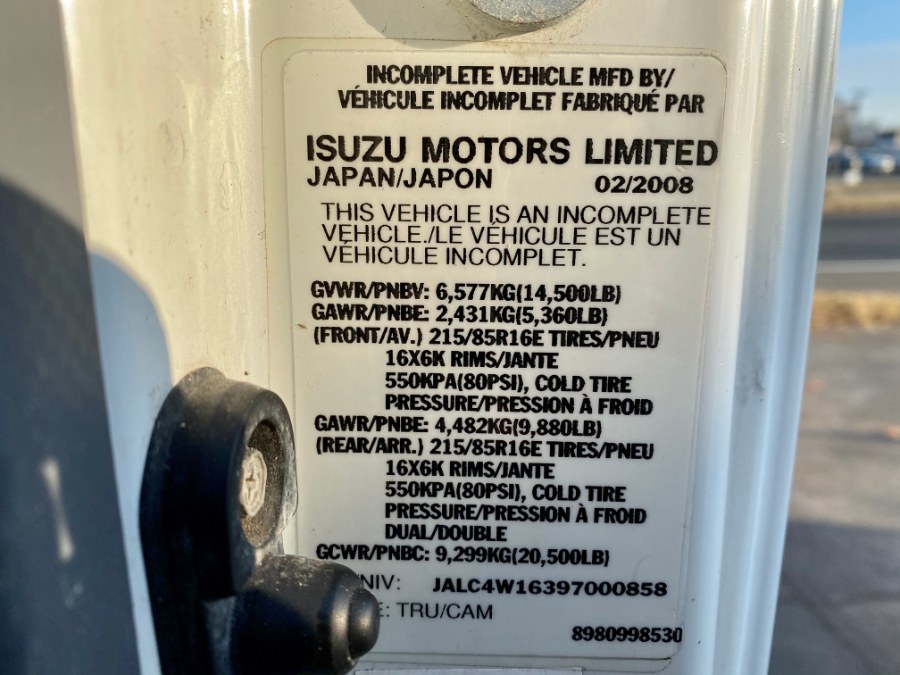

GVWR, 14500 lbs (6577 kg) capacity
Rear Axle Ratio, 4.30:1
Rear Axle Ratio, 4.777:1
Rear Axle, R066, full-floating single-speed, 14,550 lbs. (6600 kg) capacity with oil lubricated rear wheel bearings
Rear Axle, R066, full-floating single-speed, 14550 lbs. (6600 kg) capacity with oil lubricated rear wheel bearings
Rear GAWR, 9880 lbs (4481 kg) capacity
Rear Suspension, 9880 lbs. (4481 kg) capacity. Semi-elliptical main and auxiliary multi-leaf springs. Includes shock absorbers.

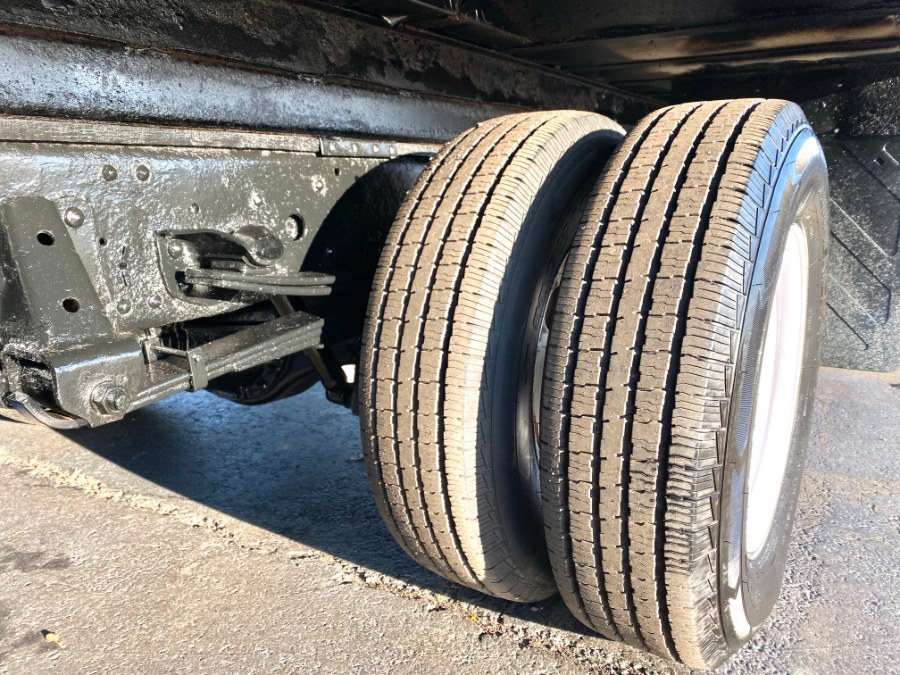

Rear Tires, 215/85R16E (10 ply) tubeless Radial, all season
