4HK1-TC, diesel engine 317 CID (5.19L), 215 HP at 2550 RPM: 452 ft-lb gross torque at 1850 RPM. 4 cylinder, 16 valve, four cycle, overhead cam, turbocharged, inter-cooled, water cooled EGR valve, direct injection, electronically controlled common rail fuel system, engine cruise control and idle up function. Oil level check switch and light. Engine
Air Cleaner, 11 in. diameter Dry Paper single element. (Donaldson brand) Air cleaner canister standard with air restriction gauge. The air cleaner snorkel is incorporated into the back of the cab and incorporates a resonator.
Alternator, 110 AMP with integral regulator
Battery, Dual 12-V maintenance free, 750 CCA each
Brake System, Dual circuit, hydro-boost hydraulic with EBD (Electronic Brake Distribution). Disc front and self-adjust outboard mounted drum rear. Mechanical, transmission mounted parking brake. Non-asbestos semi metallic linings are standard. 4 channel anti-lock brake system.
Exhaust Brake, Butterfly valve type
Exhaust System, Single horizontal with DPF (Diesel Particulate Filter)
Front Axle, Reverse Elliot "I"-beam rated at 6830 lbs. (3098 kg). Includes integral hydraulic power steering. Ratio 18.8-20.9:1
Front GAWR, 6830 lbs (3098 kg) capacity
Front Suspension, 8440 lbs. (3828 kg) capacity. Semi-elliptical steel alloy tapered leaf springs. Includes shock absorbers and stabilizer bar.

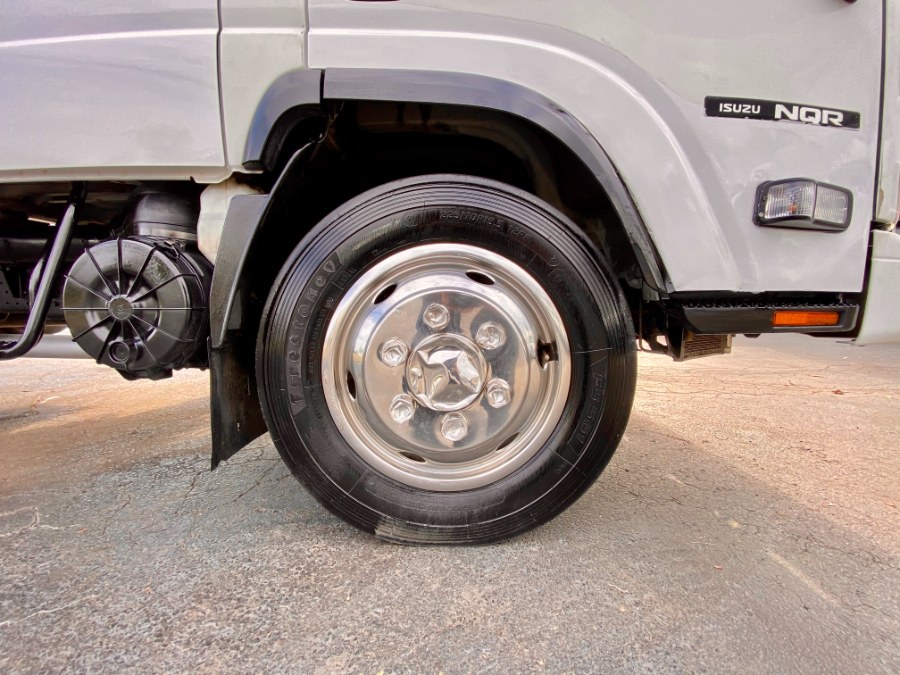

Front Tires, 225/70R19.5F (12 ply) tubeless Radial, all season tread
Front Wheels, 19.5" x 6", 6-hole disc, painted white
Fuel Tank, 30-gallon (113.6L) rectangular fuel tank. Mounted between frame rail through the rail fuel fill. Fuel water separator with dash mounted warning light.
GVWR, 17950 lbs (8142 kg) capacity
Rear Axle Ratio, 5.125:1
Rear Axle, Full-floating single-speed, 14550 lbs. (6600 kg) capacity with oil lubricated rear wheel bearings
Rear GAWR, 12980 lbs (5888 kg) capacity
Rear Suspension, 14550 lbs. (6600 kg) capacity. Semi-elliptical steel alloy multi-leaf springs. Includes shock absorbers.
Rear Tires, 225/70R19.5F (12 ply) tubeless Radial, all season tread
Rear wheel drive
Rear Wheels, 19.5" x 6", 6-hole disc, painted white
Isuzu Vehicle Health Report (Standard on all N-Series diesel trucks, exclusive to Isuzu, monitors the trucks performance, and driver behavior. Reports provide detailed information on engine operation, braking, emissions, fuel economy, acceleration & deceleration frequency, idling, and speed history. Ask your Isuzu dealer to provide you with an Isu

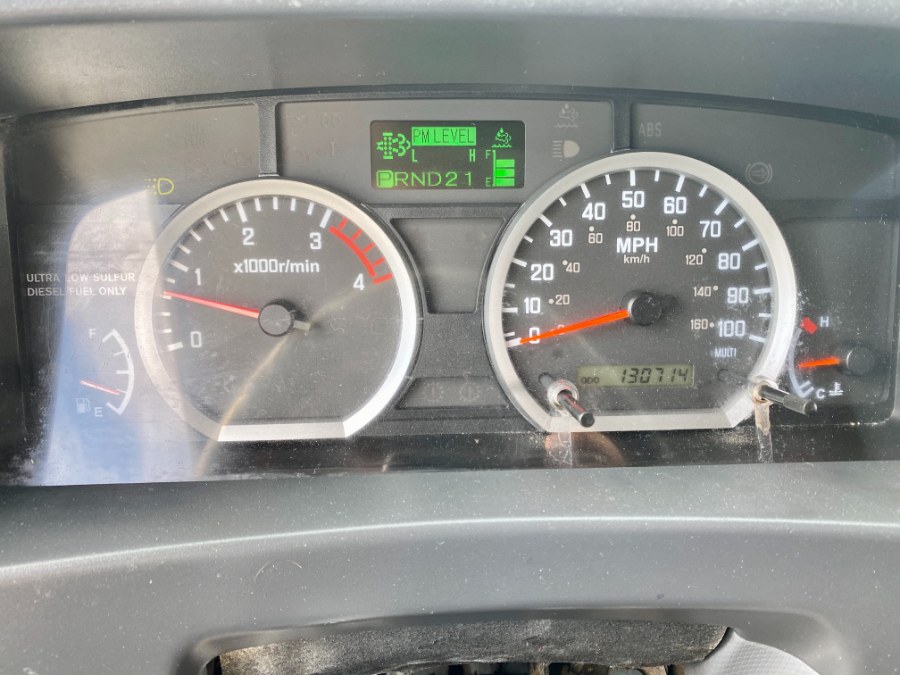

Multi-Information Display (MID) (monitors vital functions including diesel exhaust fluid levels (DEF), particulate matter emissions level in the diesel particulate filter (DPF), diesel particulate filter regeneration, service reminders for engine oil, transmission oil, differential oil, power steering fluid, engine oil filter, and fuel filters. The
Overhead storage shelf
Power windows & door locks

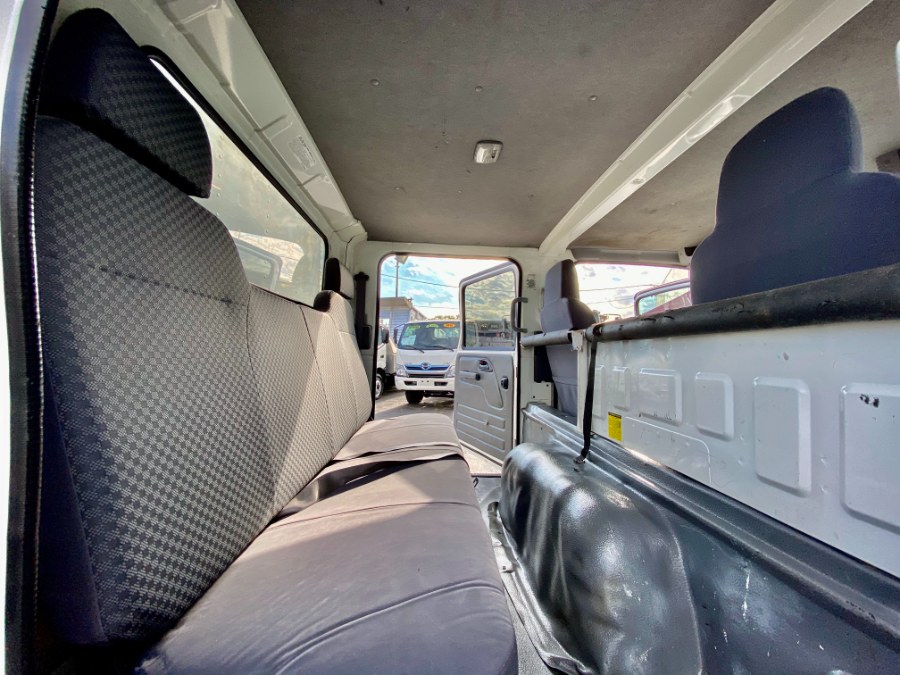

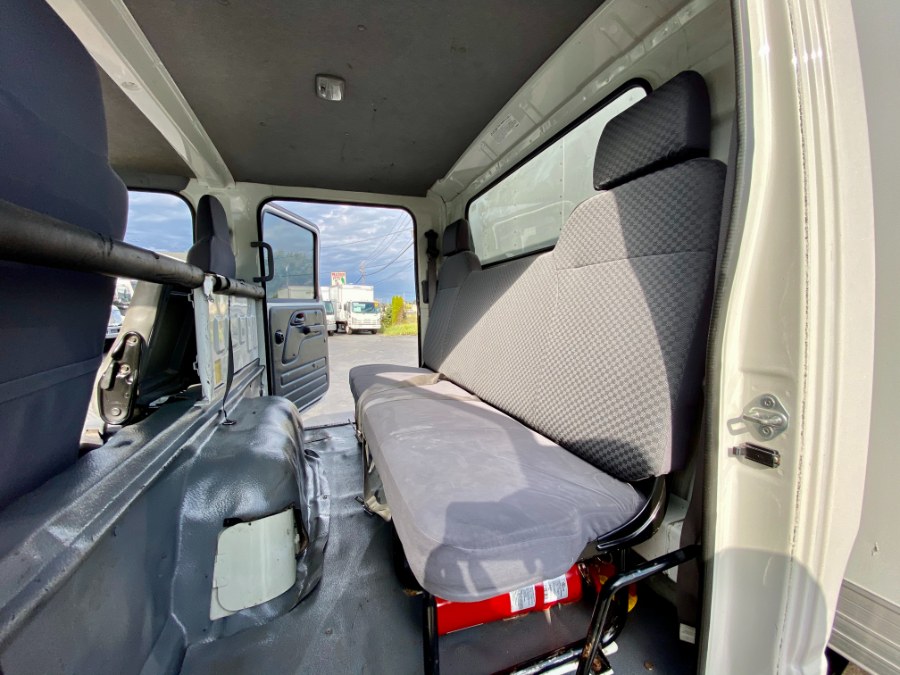

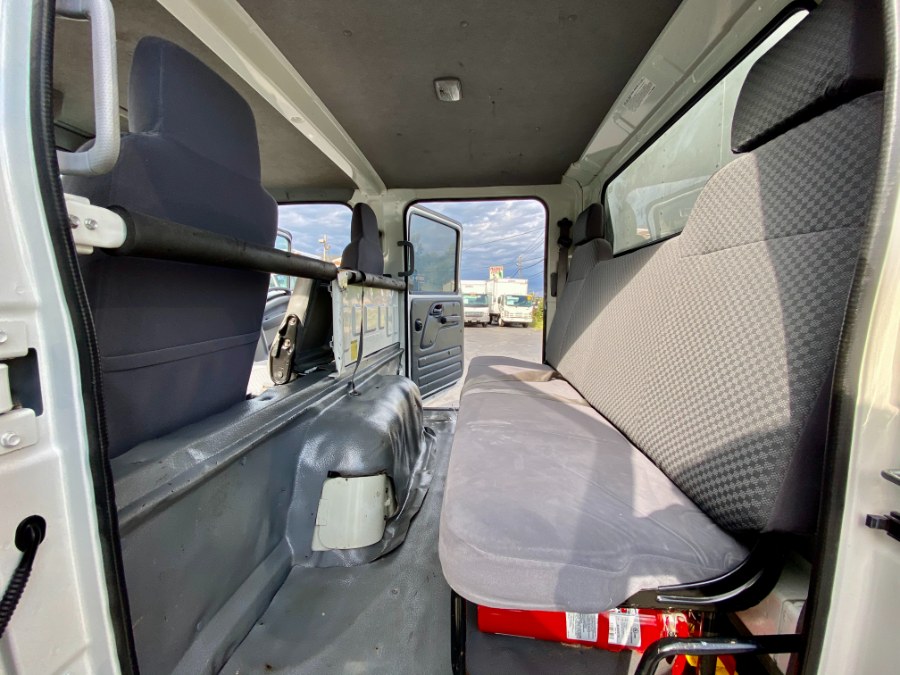

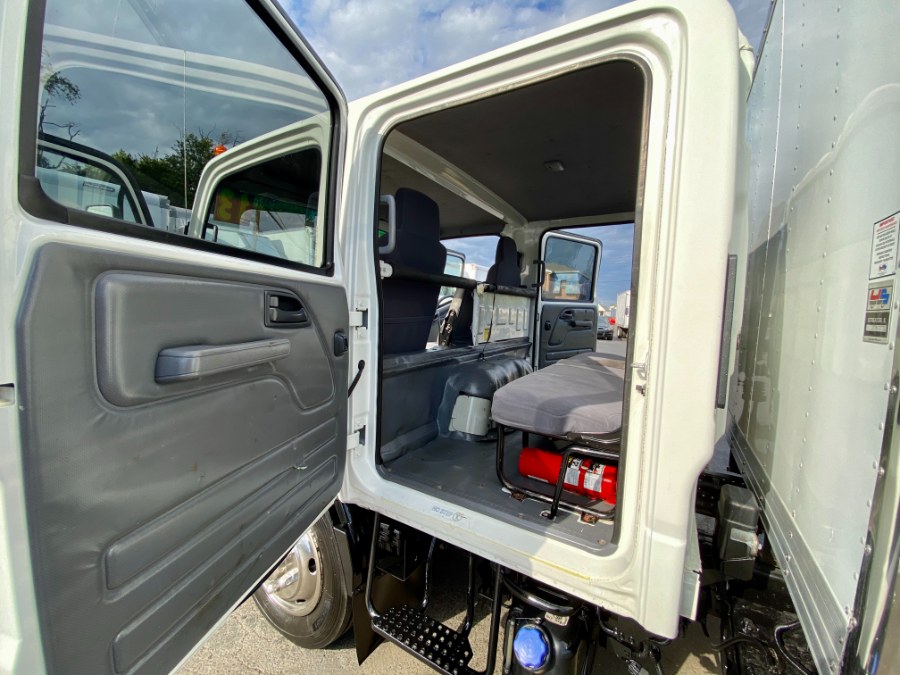

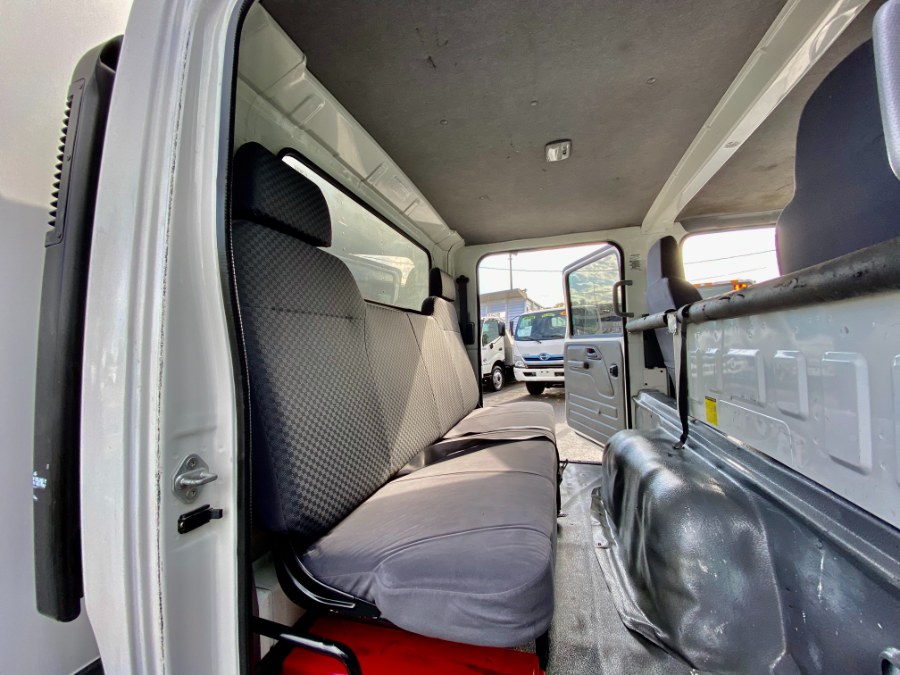

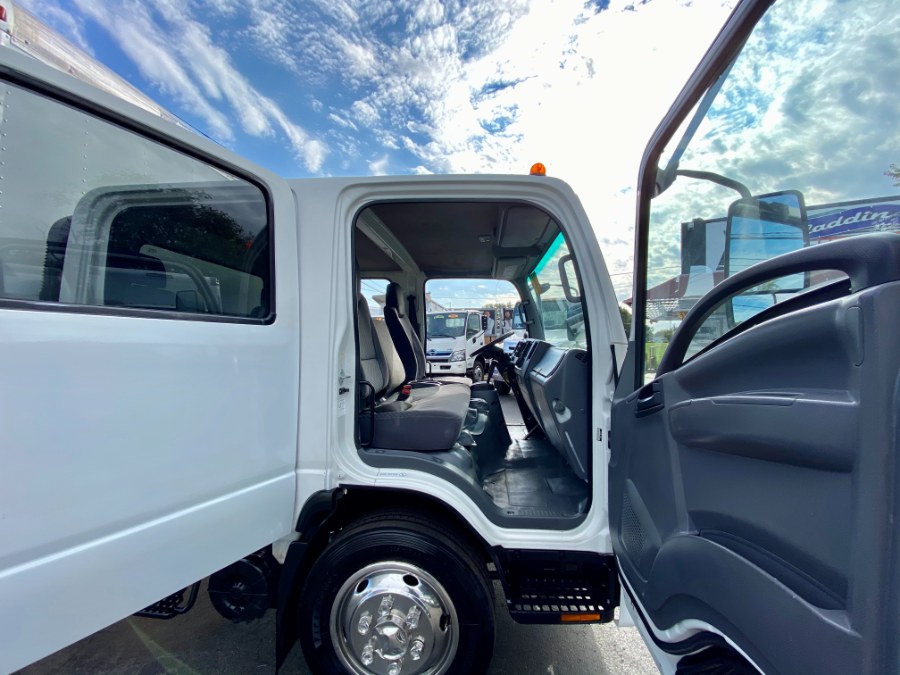

Seats, Passenger, Four passenger rear bench seat

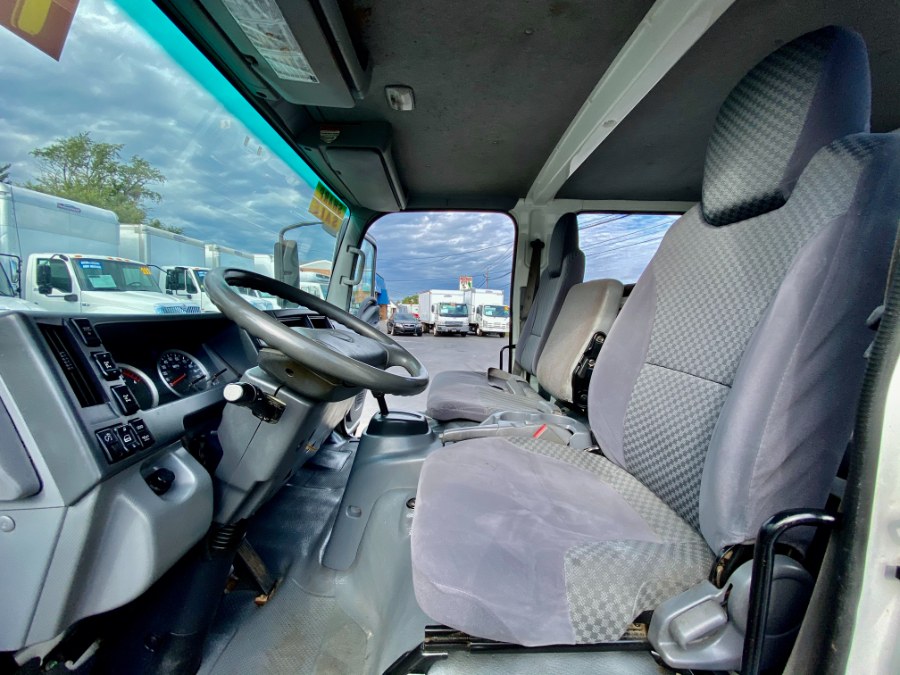

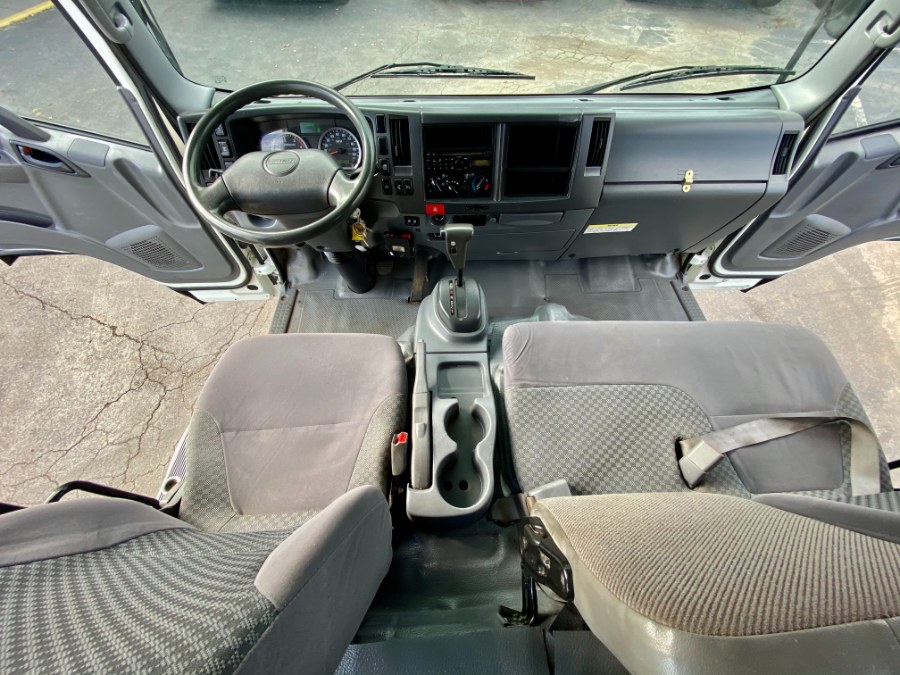

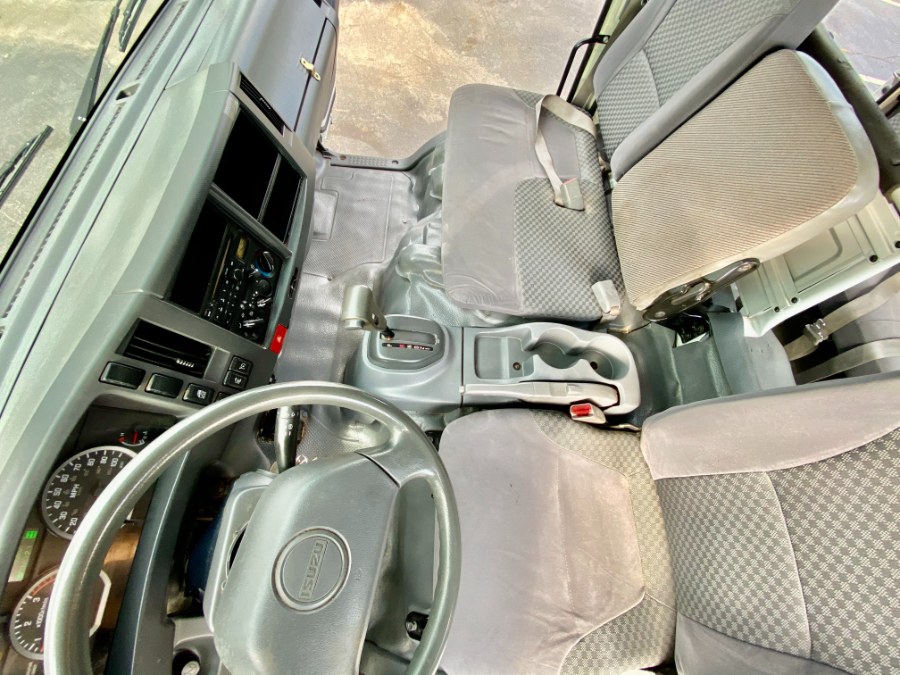

Tilt and telescoping steering column

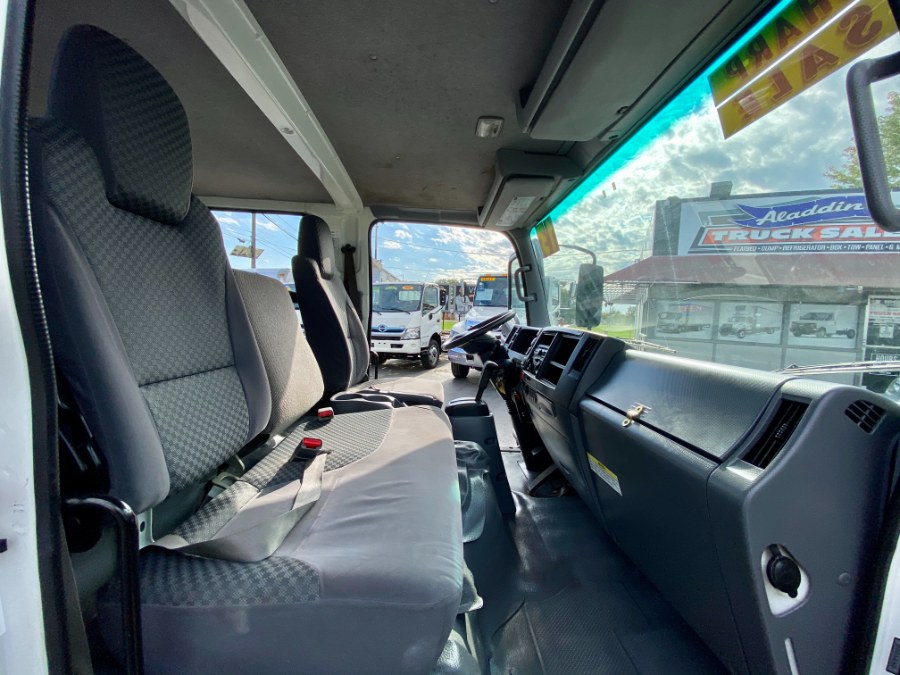

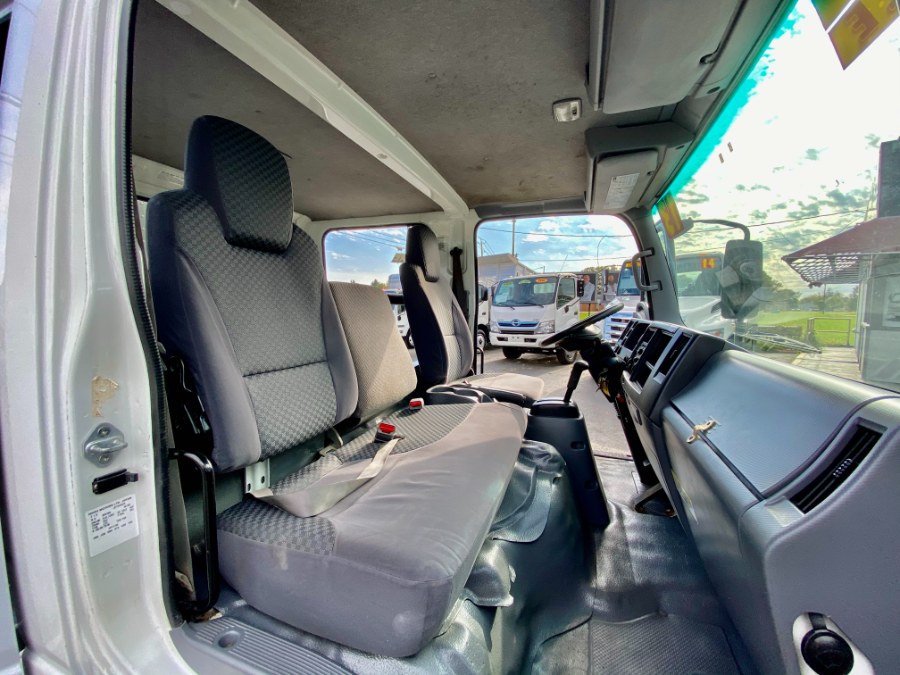

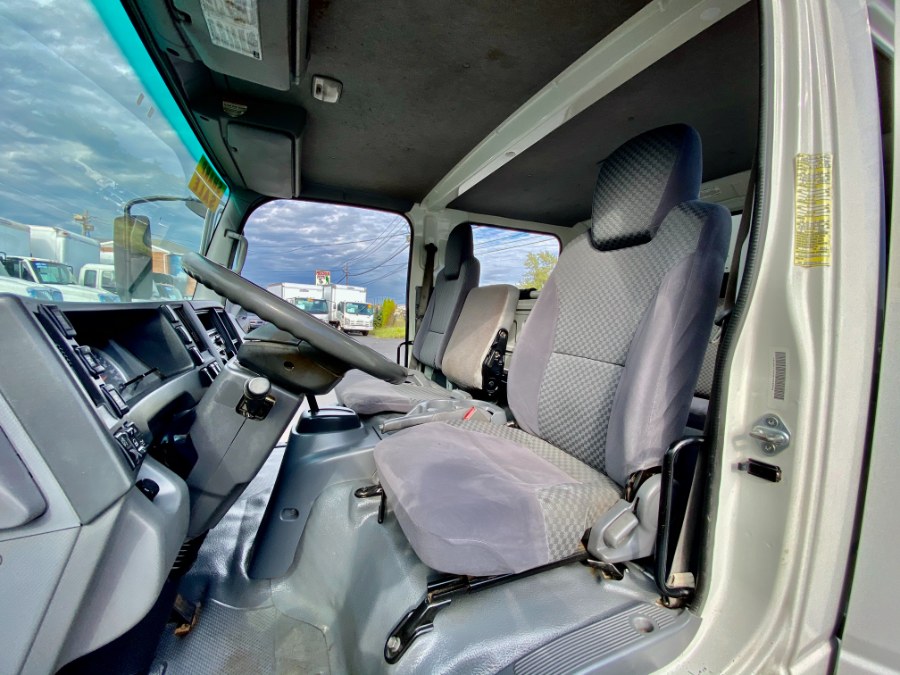

Tricot and jersey knit combination cloth covered reclining highback driver seat with single two occupant fold down passenger seat
