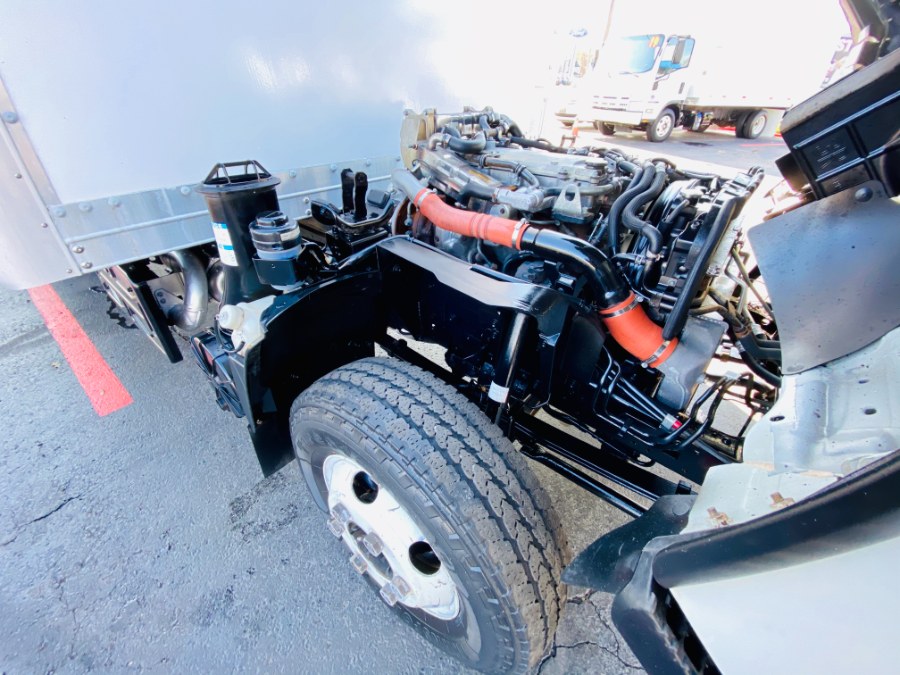

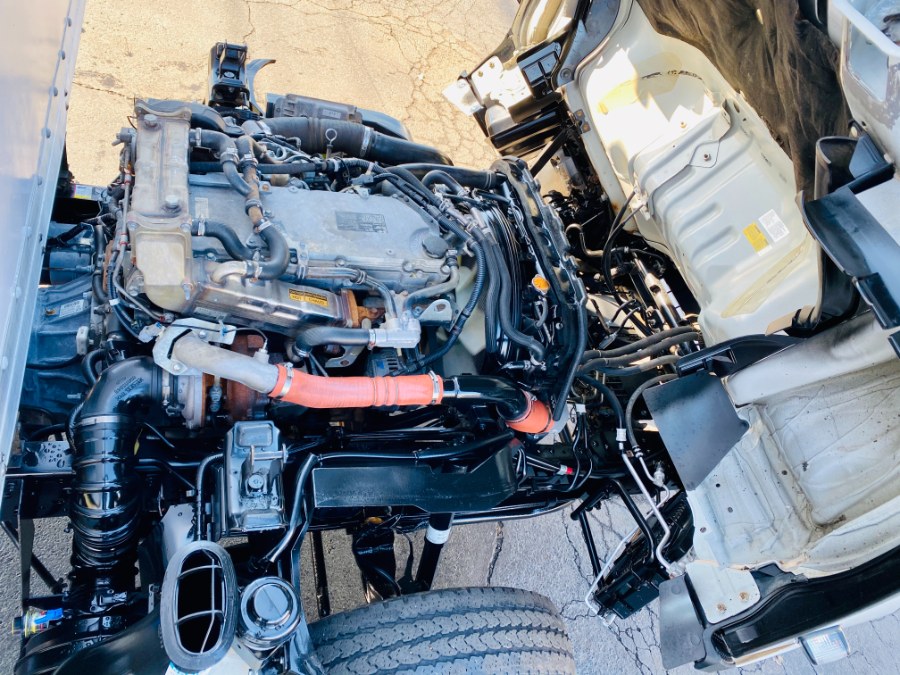

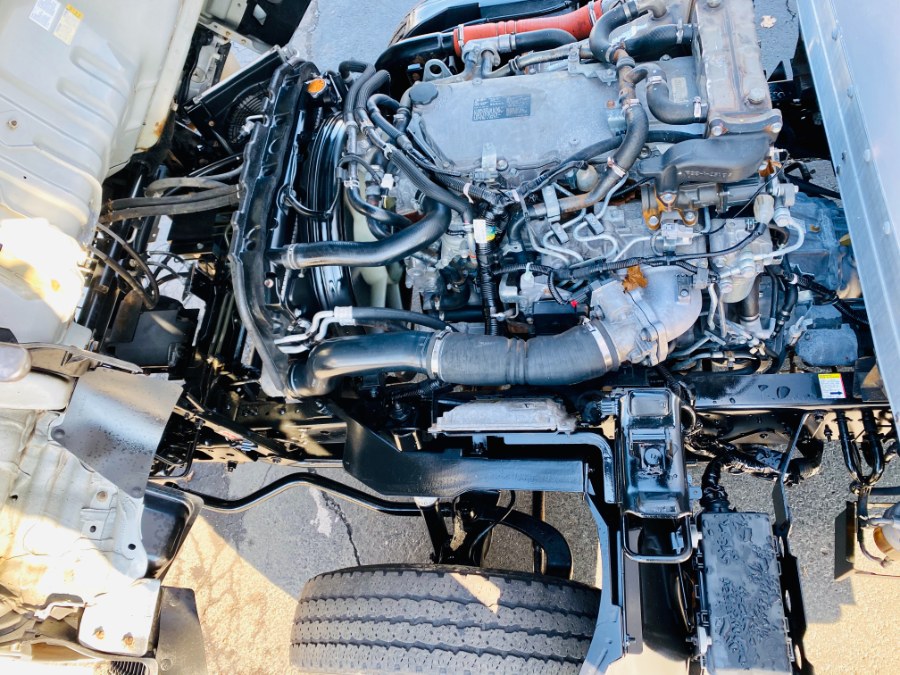

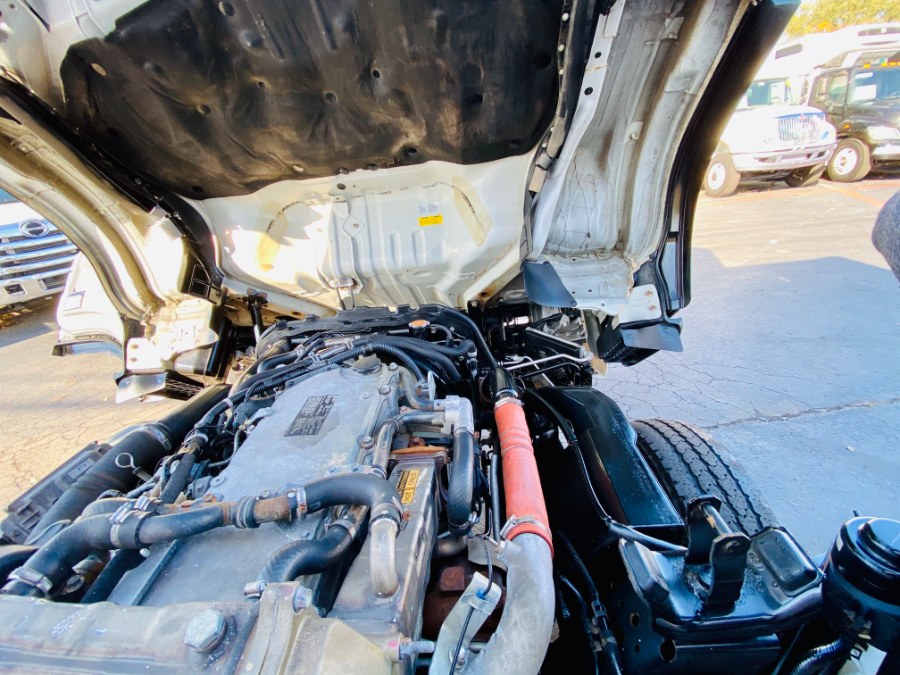

4HK1-TC, diesel engine 317 CID (5.19L), 215 HP at 2550 RPM: 452 ft-lb gross torque at 1850 RPM. 4 cylinder, 16 valve, four cycle, overhead cam, turbocharged, inter-cooled, water cooled EGR valve, direct injection, electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine Warning system wi
Air Cleaner, Dry Paper single element (Donaldson brand). Air cleaner canister standard with air restriction gauge.
Alternator, 110 AMP with integral regulator
Battery, Dual 12-V maintenance free, 750 CCA each
Brake System, Dual circuit, vacuum assisted hydraulic with EBD (Electronic Brake Distribution). Disc front and self-adjust outboard mounted drum rear. Mechanical, transmission mounted parking brake. Non-asbestos semi metallic linings are standard. 4 channel anti-lock brake system.
Exhaust Brake, vacuum operated
Exhaust System, Single horizontal with DPF (Diesel Particulate Filter)
Front Axle, Reverse Elliot "I"-beam rated at 6830 lbs. (3098 kg). Includes integral hydraulic power steering. Ratio 18.8-20.9:1
Front GAWR, 5360 lbs (2431 kg) capacity
Front Suspension, 6830 lbs. (3098 kg) capacity. Semi-elliptical steel alloy tapered leaf springs. Includes shock absorbers and stabilizer bar.
Front Tires, 215/85R16E (10 ply) tubeless radial, all season
Front Wheels, 16" x 6", 6-hole disc, painted white

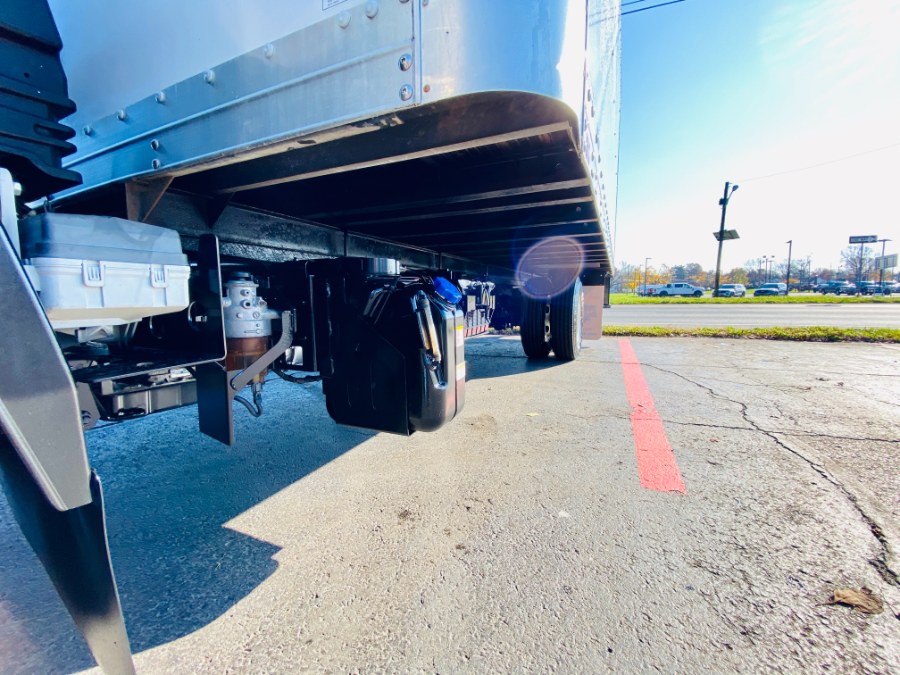

Fuel Tank, 30-gallon (113.6L) rectangular fuel tank. Mounted between frame rail through the rail fuel fill. Fuel water separator with dash mounted warning light.

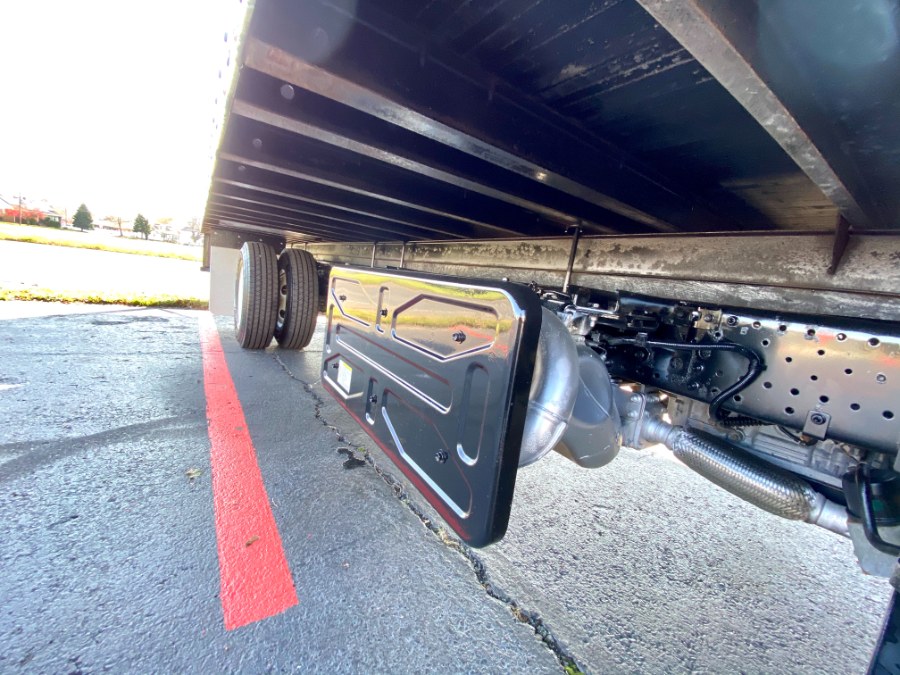

Fuel Tank, 33-gallon (124.9L) cylindrical fuel tank. Outside mounted on right hand frame rail. Fuel water separator with dash mounted warning light.

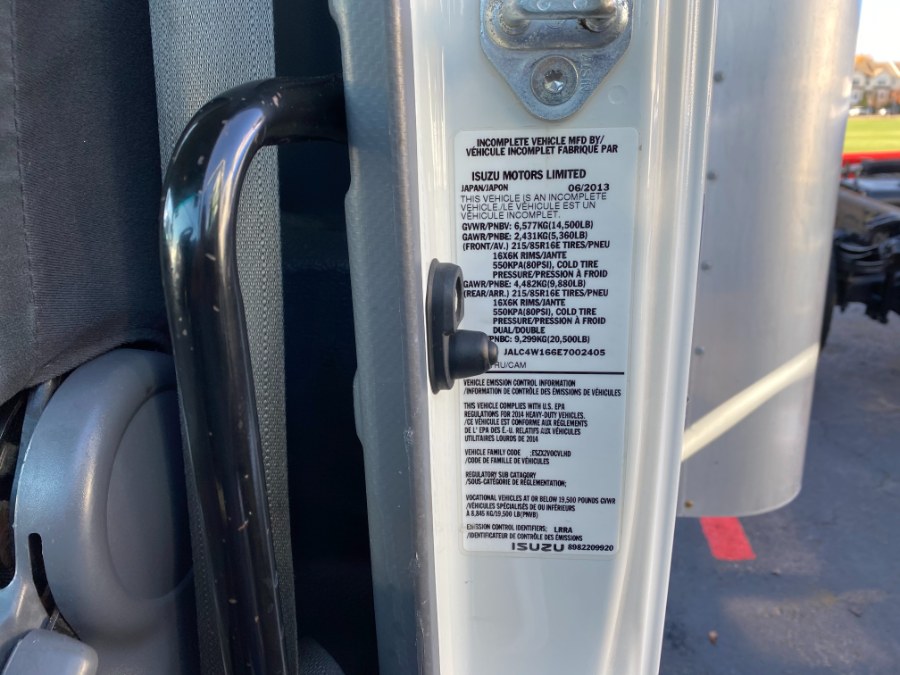

GVWR, 14500 lbs (6577 kg) capacity
Rear Axle Ratio, 4.56:1
Rear Axle, R040, Full-floating single-speed, 11,020 lbs. (4999 kg) capacity with oil lubricated rear wheel bearings
Rear GAWR, 9880 lbs (4481 kg) capacity
Rear Suspension, 9880 lbs. (4481 kg) capacity. Semi-elliptical main and auxiliary multi-leaf springs. Includes shock absorbers.

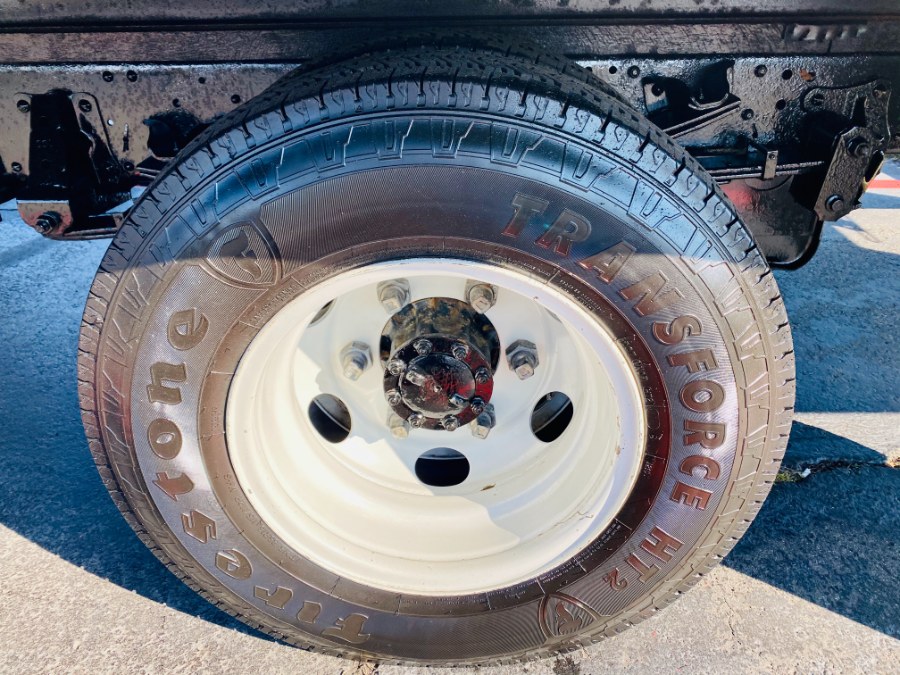

Rear Tires, 215/85R16E (10 ply) tubeless radial, all season
Wheelbase, 109" (276.9 cm), includes ladder type channel frame. Full C section straight frame 33.5 inches (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu. in. and RBM 316,800 lb-ft/in per rail.
Wheelbase, 132.5" (336.6 cm), includes ladder type channel frame. Full C section straight frame 33.5 inches (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu. in. and RBM 316,800 lb-ft/in per rail.
Wheelbase, 150" (381.0 cm), includes ladder type channel frame. Full C section straight frame 33.5 inches (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu. in. and RBM 316,800 lb-ft/in per rail.
Wheelbase, 176" (447.0 cm), includes ladder type channel frame. Full C section straight frame 33.5 inches (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu. in. and RBM 316,800 lb-ft/in per rail.
Isuzu Vehicle Health Report (Standard on all N-Series diesel trucks, exclusive to Isuzu, monitors the trucks performance, and driver behavior. Reports provide detailed information on engine operation, braking, emissions, fuel economy, acceleration & deceleration frequency, idling, and speed history. Ask your Isuzu dealer to provide you with an Isu

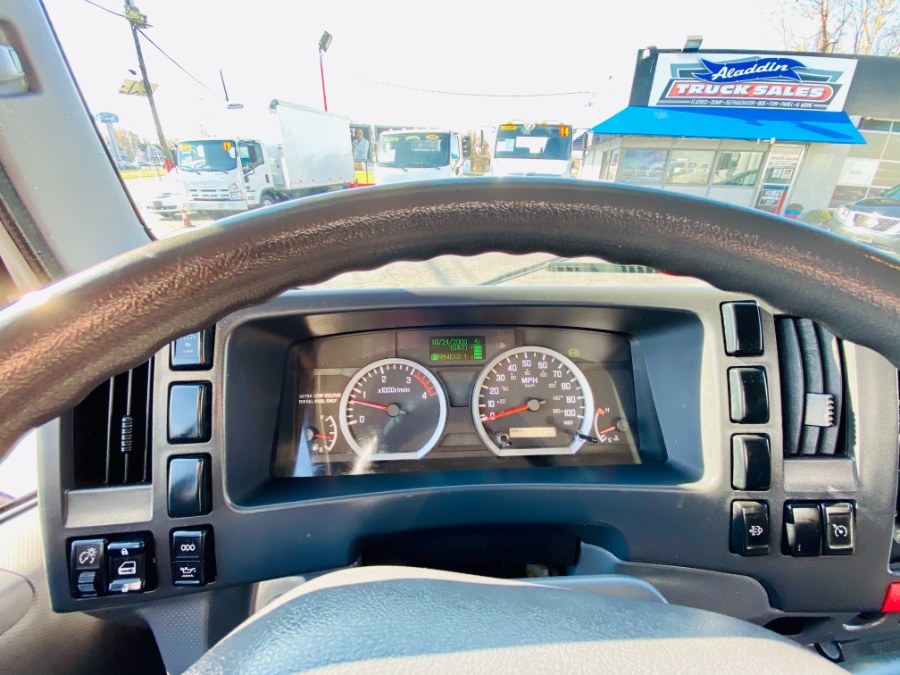

Multi-Information Display (MID) (monitors vital functions including diesel exhaust fluid levels (DEF), particulate matter emissions level in the diesel particulate filter (DPF), diesel particulate filter regeneration, service reminders for engine oil, transmission oil, differential oil, power steering fluid, engine oil filter, and fuel filters. The

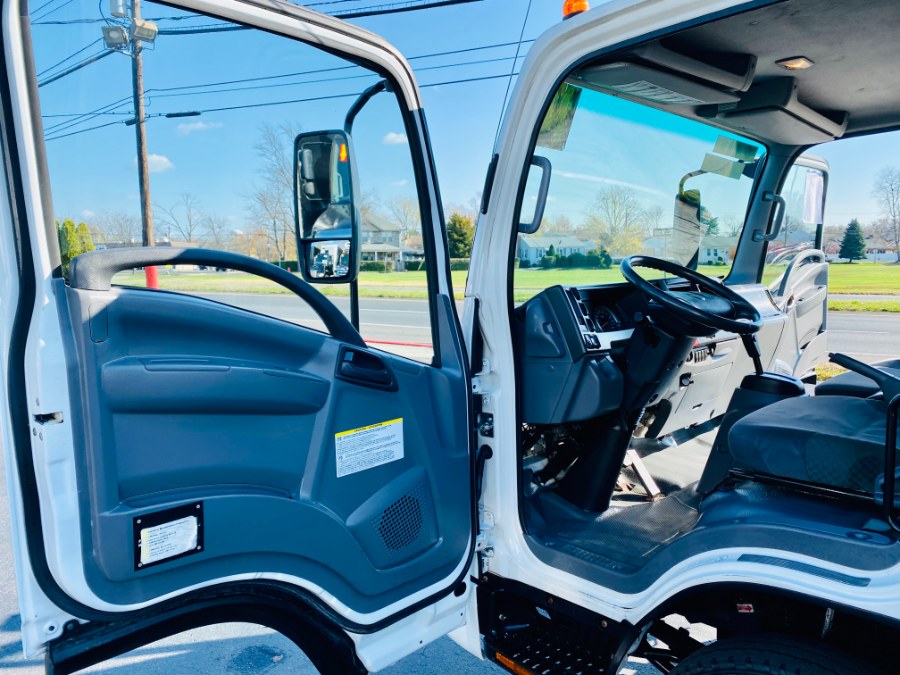

Power windows & door locks

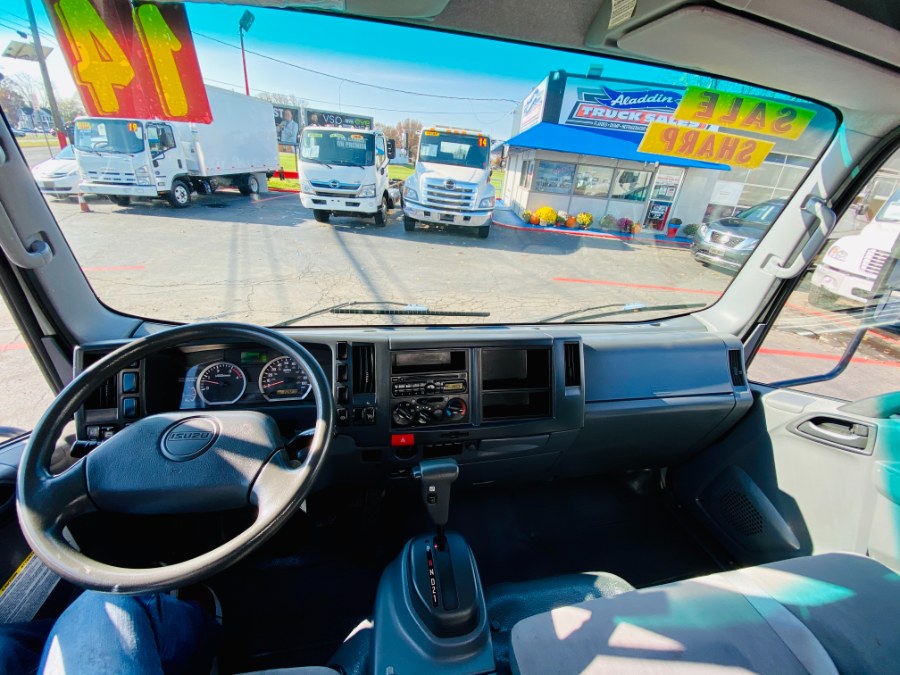

Tilt and telescoping steering column

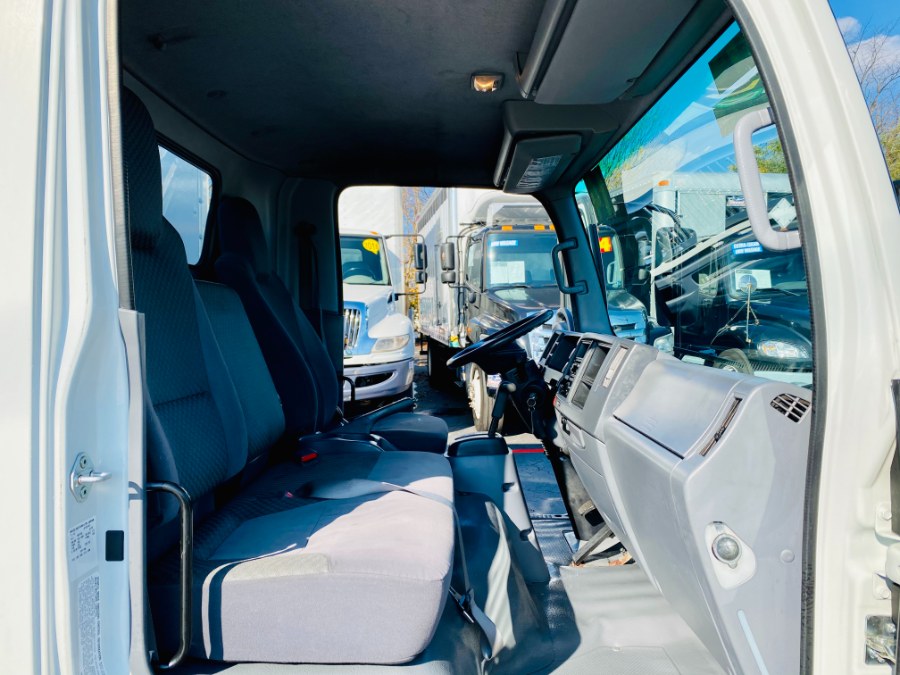

Tricot and jersey knit combination cloth covered reclining highback driver seat with single two occupant fold down passenger seat
