Air Cleaner, 11 in. diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
Alternator, 145 Amp. output with integral regulator
Battery, Single Delco 12-V maintenance free 750 CCA frame mounted battery box
Brake System, Dual circuit, vacuum assisted hydraulic with EBD (Electronic Brake Distribution). Disc front and self-adjust outboard mounted drum rear. Mechanical, transmission mounted parking brake. Non-asbestos semi metallic linings are standard. 4 channel anti-lock brake system.
Exhaust System, Single horizontal aluminized steel with catalytic converter and oxygen sensor devices
Front Axle, Reverse Elliot "I"-beam rated at 6830 lbs. (3098 kg). Includes integral hydraulic power steering. Ratio 18.8-20.9:1
Front GAWR, 4860 lbs capacity
Front Suspension, 8440 lbs. (3828 kg) capacity. Semi-elliptical steel alloy tapered leaf springs. Includes shock absorbers and stabilizer bar.
Front/Rear Tires, 215/85R16E (10 ply) LRR (low rolling resistance) tubeless steel belted radials, all season
Front/Rear Wheels, 16" x 6", 6-hole disc, painted white
Fuel Tank, 30-gallon (113.6L) rectangular fuel tank. Mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill

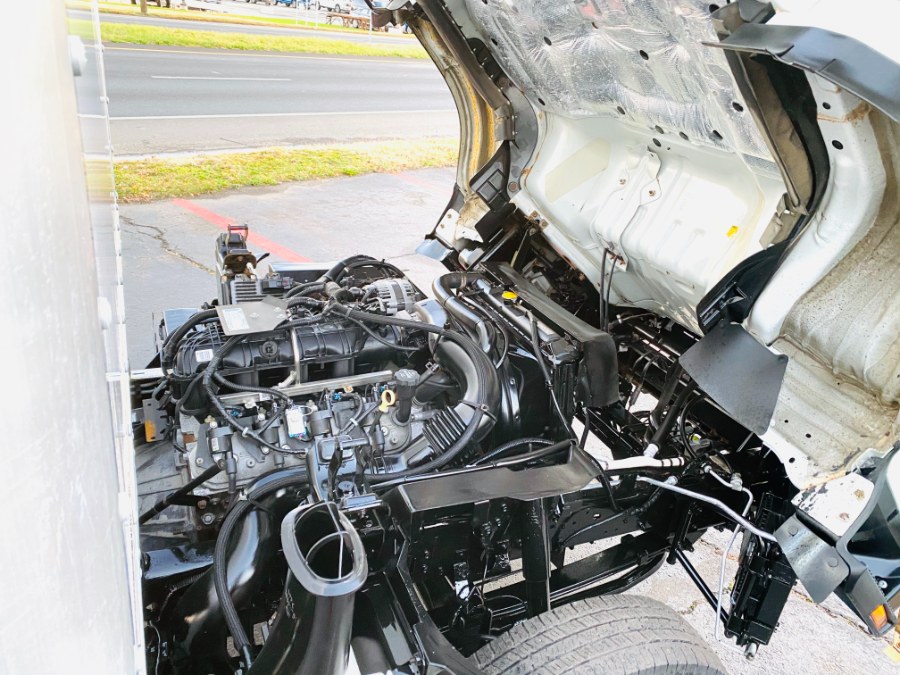

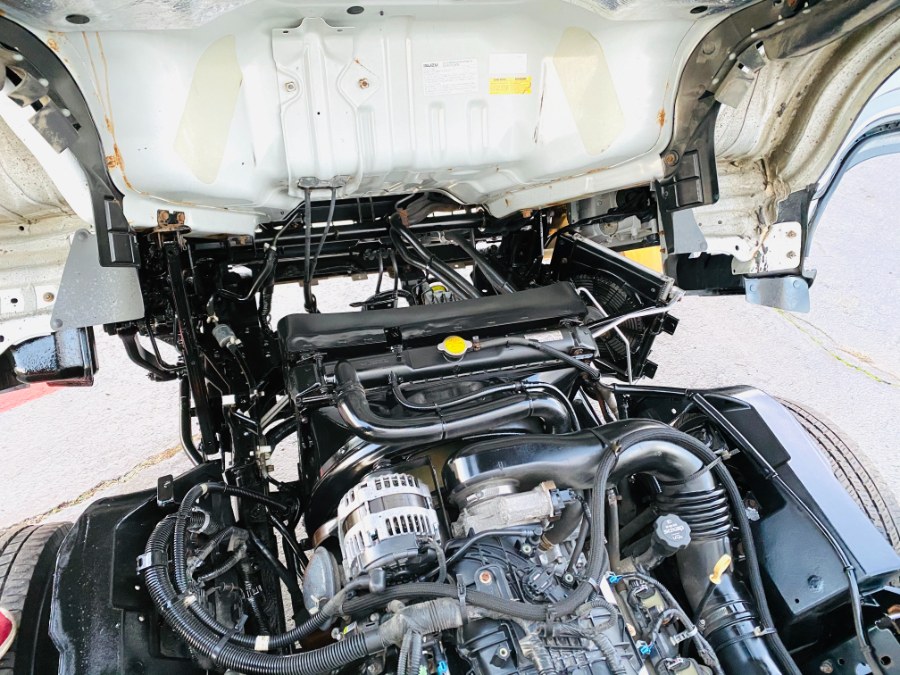

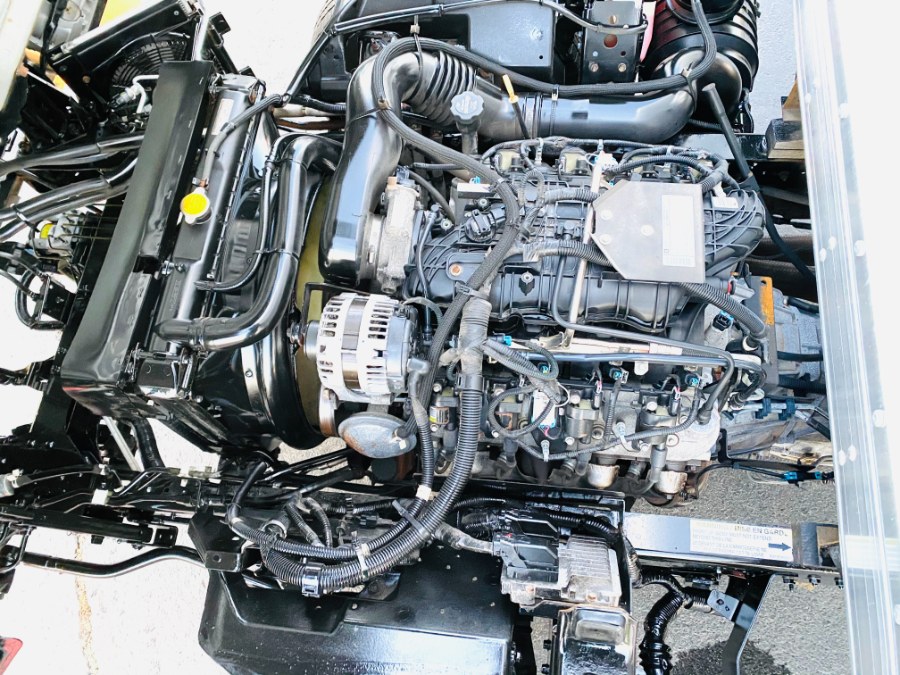

Gas Engine, GMPT-V8 8 cylinder V block, four cycle overhead valve water cooled Vortec 6 liter SFI V8 297 HP gross @ 4300 RPM; 372 lb-ft gross torque @ 4000 RPM. Electronically controlled sequential fuel injection. Six bolt main cap design for heavy duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control
GVWR, 12,000 lbs (5443 kg) capacity
Rear Axle Ratio, 5.125:1
Rear Axle, R040, Full-floating single-speed, 11,020 lbs. (4999 kg) capacity with oil lubricated rear wheel bearings
Rear GAWR, 8840 lbs capacity
Rear Suspension, 12,900 lbs. (5851 kg) capacity. Semi-elliptical steel alloy multi-leaf springs. Includes shock absorbers.
Rear wheel drive
Transmission, Automatic, 6L90-E Hydra-Matic, 6-speed automatic with lock-up converter and overdrive. Ratios: Gear and Ratios 4.027, 2.364 ,1.532, 1.152, 0.852, 0.667, Rev. 3.064:1
Truck Application
Wheelbase, 109" (276.9 cm), includes ladder type channel frame. Full C section straight frame 33.5 inches (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.
Wheelbase, 132.5" (336.6 cm), includes ladder type channel frame. Full C section straight frame 33.5 inches (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.
Wheelbase, 150" (381.0 cm), includes ladder type channel frame. Full C section straight frame 33.5 inches (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.
Wheelbase, 176" (447.0 cm), includes ladder type channel frame. Full C section straight frame 33.5 inches (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.
Please confirm the accuracy of the specifications provided above with the dealer's
representative. Neither the dealer nor the provider of the information is responsible
for misprints or other errors regarding this data. Mileage information is based on an EPA rating at the time the vehicle was manufactured.
Actual mileage will vary with options, driving conditions, driving habits, and vehicle's condition.
